FLUKE FLK-729PRO 7M | Fluke 729 Pro Automatic pressure calibrator, 7 MPa, 1000 psi

Manufacturer number: FLK-729PRO 7M

FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
FLK-729PRO 7M
Delivery time upon request

€15,390.00

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Fluke FLK-729PRO 7M | Fluke 729 Pro Automatic pressure calibrator, 7 MPa, 1000 psi

Product features:

  • Pressure control range: -13 to 1000 psi (-90 to 7000 kPa / -0.90 to 70 bar)
  • Control stability: 0.005 % of full scale (FS)
  • Measurement uncertainty (1 year): 0.02 % of FS
  • mA measurement, simulation and source: 0 to 24 mA (resolution: 1 μA)
  • DC voltage measurement: 0 to 30 V DC (resolution: 1 mV)
  • Loop voltage: 24 V DC at 20 mA
  • Temperature measurement: -50 °C to +150 °C with RTD probe (optional)
  • Temperature accuracy: ±0.1 °C (±0.2 °F)
  • Automatic calibration with templates
  • HART communication integrated
  • Automatic pressure steps & ramp function
  • Pressure leak test and pressure switch test integrated

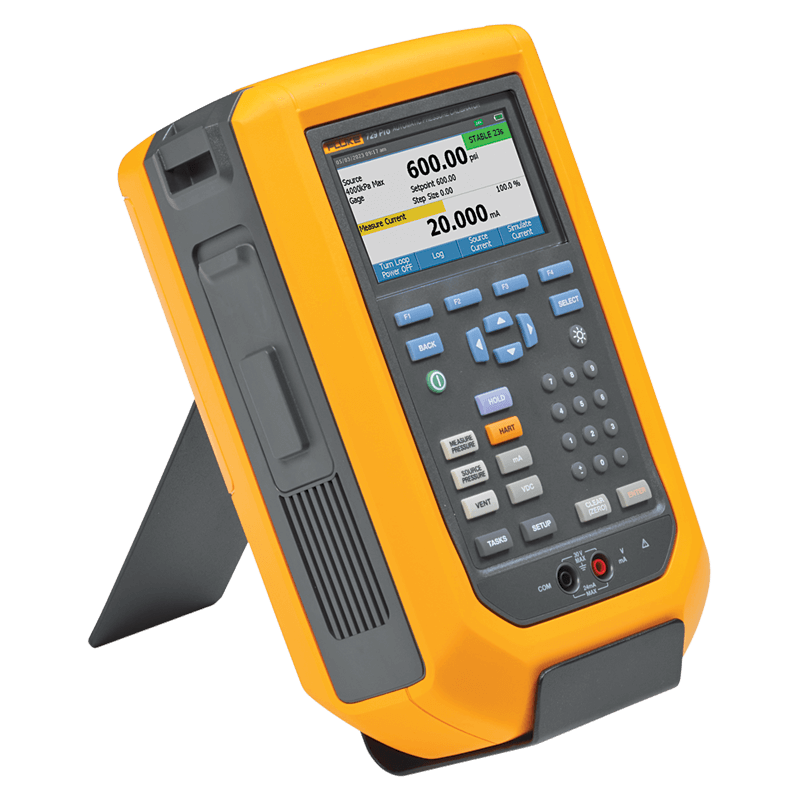

  • Graphical color display (three channels)

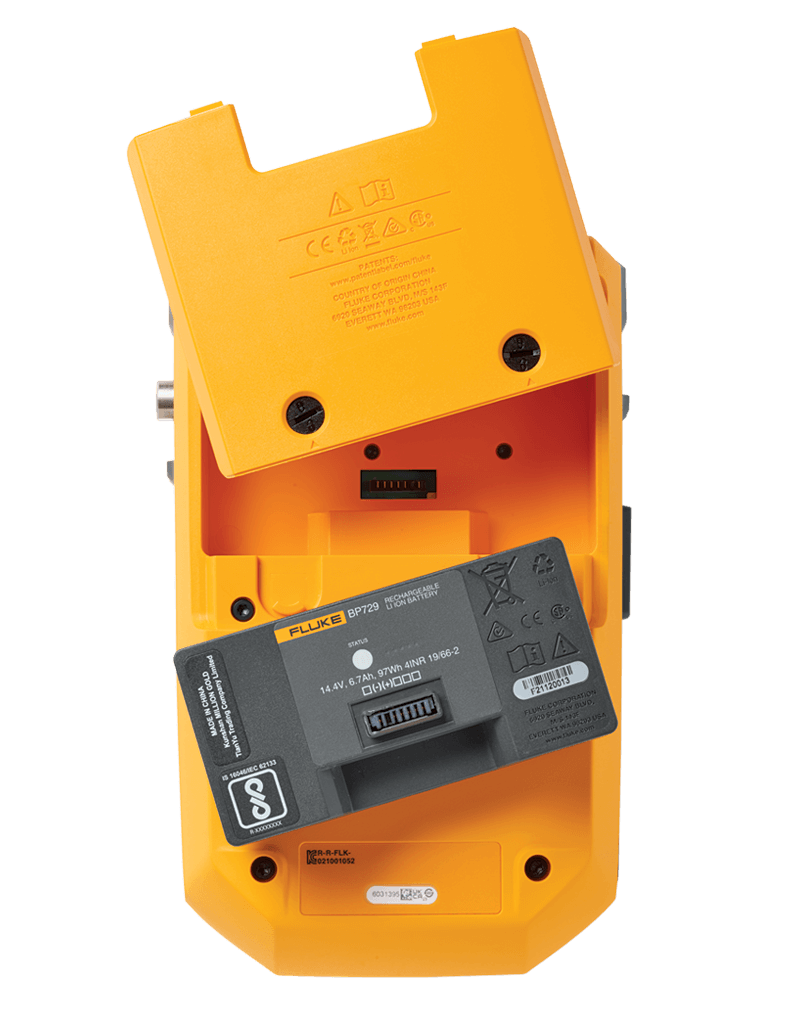

  • Powerful, rechargeable lithium-ion battery
  • Dimensions: 290 x 215 x 100 mm
  • Weight: 4.9 kg
  • Operating ambient temperature: -10 °C to +50 °C
  • Storage temperature: -20 °C to +60 °C
  • Operating altitude: < 3000 m
  • Compatible with Fluke 750P pressure modules
  • Protection class: IEC 61010-1, pollution degree 2

Documents & Downloads

Datasheet
pdf | 0.62 MB

Description

FLK-729PRO 7M | Fluke 729 Pro Automatic pressure calibrator, 7 MPa, 1000 psi

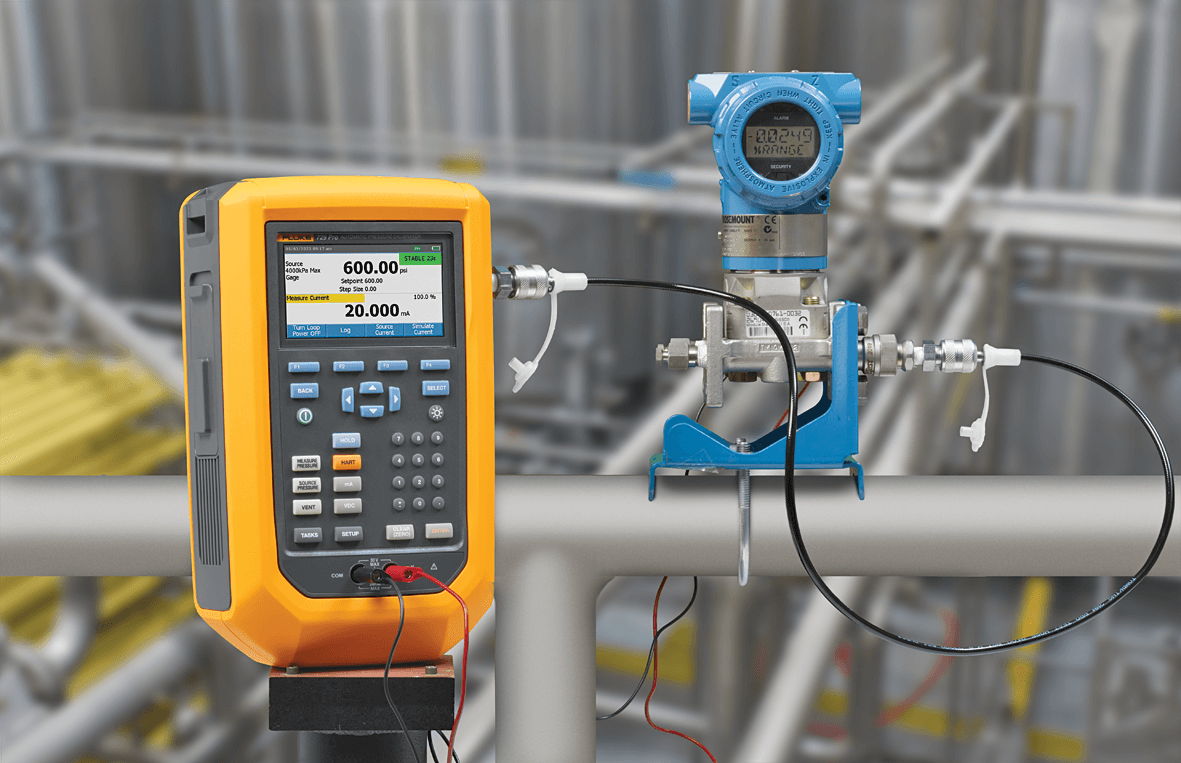

The Fluke 729 Pro Series stands for precise, automated pressure calibration up to 1000 psi (7 MPa), designed for process technicians who need efficiency, accuracy and documentation in a portable device. The integrated electric pump automatically generates and regulates the pressure. Internal fine adjustment keeps the target value stable, while calibration can be documented automatically. Other functions include HART communication for versatile configurations and tests.

Typical areas of application for the series include: electrical plants, chemical plants, pharmaceutical industry, food production, automotive manufacturing, transportation and calibration laboratories.

The Fluke 729 Pro 7M is the most powerful model in the series and enables pressure calibrations up to 7 MPa (1000 psi). It is particularly suitable for applications where high pressures are required. This variant also offers comprehensive functionality for fully automatic pressure generation, precise control, documentation and HART communication.

Differences to the 729 Pro 4M variant:

  • Pressure range: 729 Pro 7M: up to 7 MPa (1000 psi) vs. 729 Pro 4M: up to 4 MPa (600 psi)
  • Number of interchangeable pressure modules: 6 modules for 7M vs. 4 modules for 4M

Accessoires (6 products)

FLK-PMM-2000K
New
FLUKE
FLK-PMM-2000K
Interchangeable pressure module, -14 to 300 psi, -95 to 2000 kPa, -0.95 to 20 bar
Delivery time upon request
€2,260.00
FLK-PMM-200K
New
FLUKE
FLK-PMM-200K
Interchangeable pressure module, -15 to 30 psi, -100 to 200 kPa, -1 to 2 bar
Delivery time upon request
€2,260.00
FLK-PMM-200KA
New
FLUKE
FLK-PMM-200KA
Replaceable pressure module, absolute, 0 to 30 psi, 0 to 200 kPa, 0 to 2 bar
Delivery time upon request
€2,260.00
FLK-PMM-4000K
New
FLUKE
FLK-PMM-4000K
Interchangeable pressure module, -14 to 600 psi, -95 to 4000 kPa, -0.95 to 40 bar
Delivery time upon request
€2,825.00
FLK-PMM-7000K
New
FLUKE
FLK-PMM-7000K
Interchangeable pressure module, -14 to 1000 psi, -95 to 7000 kPa, -0.95 to 70 bar
Delivery time upon request
€3,955.00
FLK-PMM-7000KA
New
FLUKE
FLK-PMM-7000KA
Exchangeable pressure module, absolute, 0 to 1000 psi, 0 to 7000 kPa, 0 to 70 bar
Delivery time upon request
€2,935.00

Alternate products (1 product)

FLK-729PRO 4M
New
FLUKE
FLK-729PRO 4M
Fluke 729 Pro Automatic Pressure Calibrator, 4 MPa, 600 psi
Delivery time upon request
€14,250.00
