FLUKE 80K-15 | Probe, high voltage 1000X, 60Hz, 15kV

Manufacturer number: 80K-15

80K-15
Delivery time upon request

On Request

%
or choose one of the following options:
Request a quote Product is already in cart Product inquiries Request education-price
Highlights Technical Data Description Related Articles

FLUKE 80K-15 | Probe, high voltage 1000X, 60Hz, 15kV

  • Voltage range: 0 to 15 kV DC or AC peak, 10 kV AC eff
  • Basic inaccuracy: DC +/- 2% 60 Hz: +/- 5%
  • Division ratio: 1000: 1
  • Safety standards: IEC 1010-2-031: 1993, type B, 40 kV DC or peak AC, 28 kV RMS AC, overvoltage category CAT I (voltage derived from current-limited transformers).
  • Input resistance: 1000 megohms
  • Required input resistance of the measuring device: 10 megohms

Technical Data

Description

80K-15 | Probe, high voltage 1000X, 60Hz, 15kV

Fluke 80K-15 is a high-voltage probe to expand the measurement options of an AC / DC voltage measuring device to 15,000 V peak AC or DC with overvoltage category CAT I. This means that the probe can only be used for measurements with current-limited circuits in the device. Examples are high voltage in television sets or copiers. Do NOT use this probe to measure high voltage in power distribution systems. The probe provides high accuracy when used with a voltmeter with a 10 megohm input impedance.

Accessoires (5 products)

Accessoires (5 products)

179
FLUKE
179
Multimeter, hand 3 3/4 digits, 0.09% basic accuracy, temperature
25 in stock. Ready to ship in 1 business day
On Request
175
FLUKE
175
Multimeter, hand 3 3/4 digits
6 in stock. Ready to ship in 1 business day
On Request
FLUKE-289 / EUR
FLUKE
FLUKE-289 / EUR
289 Really effective multimeter, handheld 4 1/2 digits, logging function, USB
12 in stock. Ready to ship in 1 business day
On Request

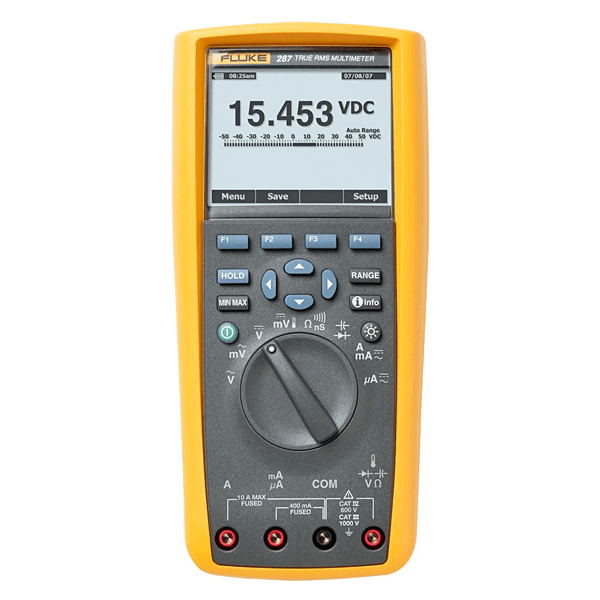

FLUKE-287 / EUR
FLUKE
FLUKE-287 / EUR
287 Truly effective handheld multimeter, 4 1/2 digits, logging function, USB
Delivery time upon request
On Request
177
FLUKE
177
Multimeter, handheld, 3 3/4 digits, 6000 digits, 1000V, CAT III 1000V
11 in stock. Ready to ship in 1 business day
On Request

About the Manufacturer

FLUKE
FLUKE
Since its founding in 1948, Fluke has provided professional tools and measurement equipment for the installation, maintenance and service of electronic equipment in industry, power, medical, building services and electrical installations, as well as in precision measurement and quality assurance.
