FLUKE FLUKE-377 FC / E | True effective clamp meter 377, Fluke Connect, 2,500 A, 60 kOhm 1000 V, CAT III 1000V, CAT IV 600

Name: FLUKE-377 FC / E | True effective clamp meter 377, Fluke Connect, 2,500 A, 60 kOhm 1000 V, CAT III 1000V, CAT IV 600
Brand: FLUKE
SKU: FLUKE-377 FC/E
Availability: OutOfStock

Manufacturer number: FLUKE-377 FC/E

Delivery time upon request

On Request

or choose one of the following options:

Product inquiries

FLUKE FLUKE-377 FC / E | Truly effective clamp meter 377 with Fluke Connect, 2,500 A, 60 KOhm 1000 V, CAT III 1000V, CAT IV 600 with non-contact measurement and iFlex.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	±2 % / ±2 %
Accuracy voltage measurement AC/DC:	±1 % / ±1 %
Article number:	5111858
Current measuring range AC/DC:	100 mA - 1000 A / 100 mA - 1000 A
Dimensions (L x W x H) (mm):	274 x 86 x 47
Diode test / continuity test:	No / Yes
Direction of rotation:	No
Enclosure (mm):	34
Frequency measuring range:	5 Hz - 500 Hz
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	Yes / Yes
Model:	FLUKE-377 FC/E
Number of positions:	4
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	100 mΩ - 60 kΩ
Resolution current measurement AC/DC:	100 mA / 100 mA
Resolution voltage measurement AC/DC:	100 mV - 1 V / 100 mV - 1 V
Temperature measuring range:	No
Voltage measuring range AC/DC:	100 mV - 1000 V / 100 mV - 1000 V
Weight (kg):	0.463

Documents & Downloads

Datasheet

pdf | 3.92 MB

Description

FLUKE-377 FC / E | True effective clamp meter 377, Fluke Connect, 2,500 A, 60 kOhm 1000 V, CAT III 1000V, CAT IV 600

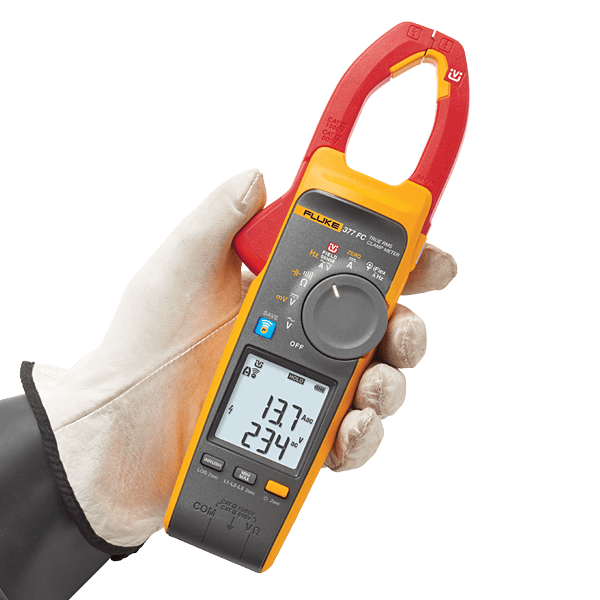

With the Fluke 377 clamp meter, you can perform accurate, non-contact voltage measurements without test leads, increasing safety and productivity. The Fluke 377 clamp meter is ideal for troubleshooting and maintenance, making it perfect for electricians, electrical contractors, HVAC technicians, field service technicians, or maintenance technicians.

The TRMS clamp meter features Fluke FieldSense technology. This enables you to carry out true rms measurements of voltages and currents without having to touch live conductors. The voltage and current measured values are displayed simultaneously on the double display.

The Fluke 377 allows you to make quick and easy three-phase measurements without handwritten notes or calculations. The pliers are simply clamped around each of the three conductors. This means that all phase-phase measured values for voltage and current are displayed on the clamp meter. In addition, the phase rotation direction is automatically calculated and displayed in the Fluke Connect software.

Product features:

Exact measurement of voltages and currents without contact
Simultaneous display of current and voltage measured values on a double display
Fast three-phase measurements with automatic calculation of the phase-phase values and the phase rotation direction (in the Fluke Connect app)
easy logging, problem-free data transfer and generation of reports with the Fluke Connect software
