FLUKE 325 | Current clamp multimeter, digital, 4-digit AC / DC, 40 / 400A

Manufacturer number: FLUKE-325

325
Delivery time upon request

€265.60

% €320.00 (17% saved)

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Fluke 325 True RMS Clamp Meter

  • Direct and alternating current measurement up to 40A / 400 A
  • DC and AC voltage measurement up to 600 V.
  • True rms values of AC voltage and current for precise measurements with non-linear signals
  • Resistance measurement up to 40 kΩ with continuity detection
  • Temperature and capacity measurement
  • Frequency measurement
  • Slim, ergonomic design
  • Large, easy to read display with backlight
  • Safety specification according to CAT IV 300V and CAT III 600 V
  • Hold button
  • Dimensions: H 207 x W 75 x D mm
  • Max. Cable diameter: 30 mm
  • Weight 283 g
  • Measurement category according to EN 61010-1: CAT III 600 V, CAT IV 300 V
  • Warranty: two years

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

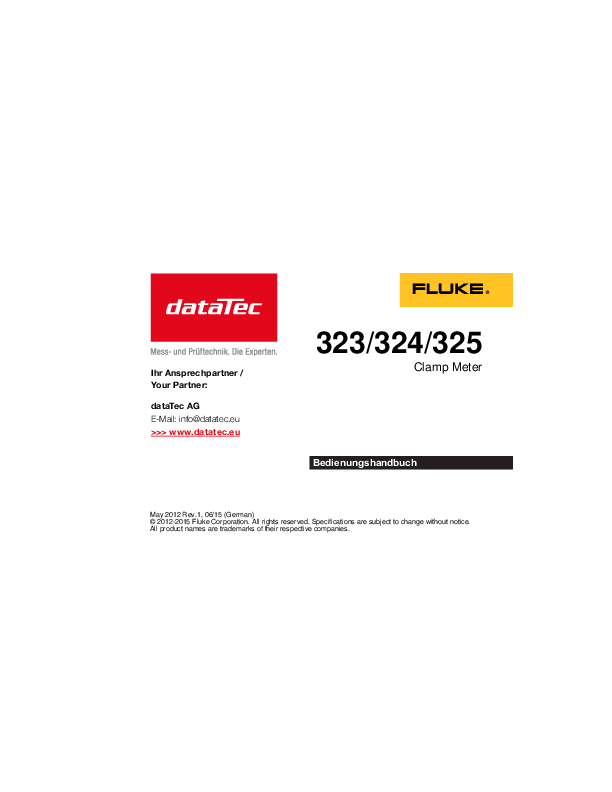

Datasheet
pdf | 1.21 MB

Description

325 | Current clamp multimeter, digital, 4-digit AC / DC, 40 / 400A

The Fluke 325 True RMS Clamp Meter offers many functions in a compact design.
True effective value measurements and optimized ergonomics make the current clamps of the 320 series the most important measuring devices for installation and troubleshooting in industrial and building technology applications. Fluke clamp meters are used to check circuits, switches, fuses and contacts for the presence of load current, AC voltage or continuity. These compact and robust clamp meters are ideal for current measurements up to 400 A in confined control cabinets. The Fluke 325 clamp meter also enables DC current and frequency measurements.

Lieferumfang

  • Clamp meter, test leads, padded carrying case and user manual
