FLUKE 177 | Multimeter, handheld, 3 3/4 digits, 6000 digits, 1000V, CAT III 1000V

Name: 177 | Multimeter, handheld, 3 3/4 digits, 6000 digits, 1000V, CAT III 1000V
Brand: FLUKE
SKU: FLUKE-177 EGFID
Availability: InStock

Manufacturer number: FLUKE-177 EGFID

1 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:

Product inquiries

Fluke 177 | Digital real effective handheld multimeter.

True rms measurement of voltage and current
0.09% basic accuracy
6,000 digits resolution
Digital display with analog segment display and background lighting
Manual and automatic range selection
Display Hold and Auto Hold
Frequency and capacitance measurement
Min / max / mean value recording
Smoothing mode for more stable measured values with varying input signals
Easy battery change without opening the housing
Calibration with the housing closed via the front panel
Ergonomic housing with integrated holster
EN 61010-1 CAT III 1000 V / CAT IV 600 V
Measures twice as fast as other multimeters
Weight 0.42 kg
Dimensions: W 89 mm x H 190 mm x D 45 mm
Warranty: lifelong

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	1592874
Backlight:	Yes
Basic precision:	3 %
Capacity measuring range:	1000 nF - 9999 µF
Current measuring range AC/DC:	60mA-10A / 60mA-10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	185 x 90 x 43
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	6000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	99,99 Hz - 99,99 kHz
Min. / Max. Recording:	Yes / Yes
Model:	FLUKE-177 EGFID
Number of positions:	3.5
Resistance measuring range:	600 Ω - 50 MΩ
Temperature measurement ( PT100 / Type K / Type J):	No
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	600 mV - 1000 V / 600 mV - 1000 V
Warranty (years):	30
Weight (kg):	0.42

Documents & Downloads

Datasheet

pdf | 0.32 MB

Description

177 | Multimeter, handheld, 3 3/4 digits, 6000 digits, 1000V, CAT III 1000V

With its high accuracy, impressive performance features, ease of use, safety and reliability, the Fluke 177 sets standards in the field of universal multimeters.

Lieferumfang

Multimeter
Test leads with 4 mm measuring tips
9 V battery

Accessoires (17 products )

Gossen Metrawatt Z219B

WZ12B current probe, 4 mm, 100 A 48 Hz - 500 Hz, U-Out

Ready to ship in 5 to 10 business days

€224.00

FLUKE I1010

Current clamp, 4 mm, 1000A DC - 10 kHz, U-Out

Delivery time upon request

€578.51 €697.00

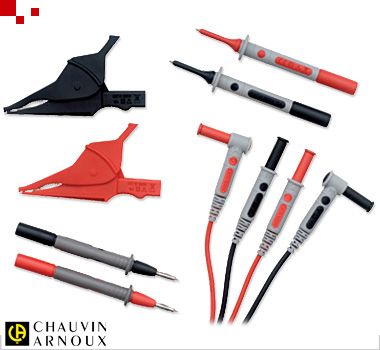

Chauvin Arnoux P01295459Z

Test lead set crocodile clips, measuring tips

Ready to ship in 5 to 10 business days

€64.00

FLUKE 80K-40

Probe, high voltage 1000X, 60Hz, 40kV for multimeters

2 in stock. Ready to ship in 1 business day

€385.12 €464.00

FLUKE 80K-6

Probe, high voltage 1000X, 1KHz, 6kV for multimeter

Delivery time upon request

€214.97 €259.00

FLUKE C125

Carrying case for Fluke multimeters

Delivery time upon request

€63.08 €76.00

FLUKE I400

Current clamp, 4 mm, 400 A 45 Hz - 3 kHz, I-Out

1 in stock. Ready to ship in 1 business day

€202.52 €244.00

Gossen Metrawatt Z207E

Metraflex 3000 current clamp 30/300/3000 A, 100/10/1 mV / A

Ready to ship in 5 to 10 business days

€699.00

FLUKE I410

Current clamp, 4 mm, 400 A DC - 3 kHz, U-Out

1 in stock. Ready to ship in 1 business day

€335.32 €404.00

FLUKE TPAK

Mounting kit for Fluke multimeters

5 in stock. Ready to ship in 1 business day

€53.12 €64.00

FLUKE 80K-15

Probe, high voltage 1000X, 60Hz, 15kV

Delivery time upon request

€373.50 €450.00

FLUKE I200

Current clamp, 4 mm, 200 A 40 Hz - 10 kHz, I-Out

Delivery time upon request

€202.52 €244.00

FLUKE L205

Mini head lamp

Delivery time upon request

€43.99 €53.00

FLUKE I200S

Current clamp, BNC, 200 A 40 Hz - 10 kHz, U-Out

2 in stock. Ready to ship in 1 business day

€335.32 €404.00

FLUKE I1010 KIT

Current clamp, 4 mm, 1000A DC - 10 kHz, U-Out, pouch

Delivery time upon request

€590.96 €712.00

FLUKE i2000 flex

Rogowski current clamp, 2000 A, 4 mm, 5 Hz - 100 kHz

Delivery time upon request

On Request

FLUKE I410 KIT

Current clamp, 4 mm, 400 A DC - 3 kHz, U-Out, with case

Delivery time upon request

€389.27 €469.00

Alternate products (15 products )

Gossen Metrawatt M243E

MetraHit TECH multimeter, hand 4 ½ digits, without interface

1 in stock. Ready to ship in 1 business day

€610.00

Gossen Metrawatt METRAHIT PM XTRA (formerly EXTRA)

Multimeter, TRMS, 4 6/7, ± 0.05% VDC, data logger (M250A)

Ready to ship in 5 to 10 business days

€924.00

Gossen Metrawatt METRAHITE OUTDOOR

Multimeter, TRMS, 4 1/2, ± 0.05% VDC, IP65 (M240O)

Ready to ship in 5 to 10 business days

€798.00

Gossen Metrawatt M241A

Metrahit BASE multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

Ready to ship in 5 to 10 business days

€419.00

Gossen Metrawatt METRAHITE PM TECH

Multimeter, TRMS, 4 6/7, ± 0.05% VDC (M253A)

Ready to ship in 5 to 10 business days

€809.00

Gossen Metrawatt M243A

Metrahit TECH multimeter, hand 4 ½ digits, 12,000 digits, DAkkS

4 in stock. Ready to ship in 1 business day

€572.00

Gossen Metrawatt M252A

Metrahit EU Pro Multimeter 4 6/7 digits, 60,000 digits, IR, DAkkS, case

Ready to ship in 5 to 10 business days

€777.00

Gossen Metrawatt M206A

Metrahit WORLD multimeter, hand 3 6/7 digits, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€415.00

Gossen Metrawatt M240A

Metrahit X-TRA multimeter, hand 4 ½ digits, 12,000 digits, IR interface, DAkkS

2 in stock. Ready to ship in 1 business day

€699.00

FLUKE L205

Mini head lamp

Delivery time upon request

€43.99 €53.00

Gossen Metrawatt M242A

Metrahit PRO multimeter, hand 4 ½ digits, 12,000 digits, DAkks

Ready to ship in 5 to 10 business days

€492.00

Gossen Metrawatt M234D

Metraport 40S multimeter, hand 4 3/4 digits, folding display, DAkkS calibration certificate

2 in stock. Ready to ship in 1 business day

€870.00

FLUKE 179

Multimeter, hand 3 3/4 digits, 0.09% basic accuracy, temperature

37 in stock. Ready to ship in 1 business day

On Request

FLUKE 117

Multimeter, hand 4 digits, volt sensor

Delivery time upon request

On Request

FLUKE 115

Multimeter, handheld, TRMS 4 digits, CAT III / 600 V

8 in stock. Ready to ship in 1 business day

On Request

Recommendations (1 product )

Gossen Metrawatt M311D

Metraclip 61 current clamp AC, 300A, 3 digits

Ready to ship in 5 to 10 business days

€495.00

About the Manufacturer

FLUKE

Since its founding in 1948, Fluke has provided professional tools and measurement equipment for the installation, maintenance and service of electronic equipment in industry, power, medical, building services and electrical installations, as well as in precision measurement and quality assurance.
