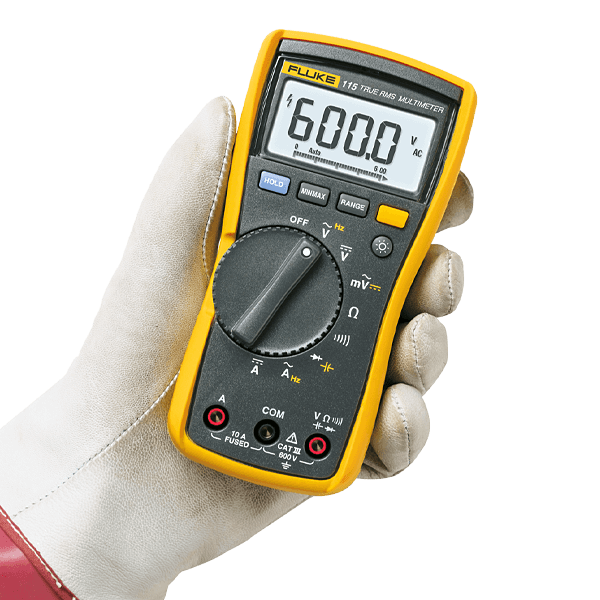

FLUKE 115 | Multimeter, handheld, TRMS 4 digits, CAT III / 600 V

Name: 115 | Multimeter, handheld, TRMS 4 digits, CAT III / 600 V
Brand: FLUKE
SKU: FLUKE-115 EUR
Availability: InStock

Manufacturer number: FLUKE-115 EUR

8 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:

Product inquiries

Fluke115 | 4-digit TRMS digital multimeter.

mV DC voltage measuring range: 600.0 mV, resolution: 0.1 mV
V DC voltage, measuring range / resolution: 6,000 V / 0.001 V, 60.00 V / 0.01 V, 600.00 V / 0.1 V
mV alternating current true effective measuring range: 600.0 mV resolution: 0.1 mV
V alternating current true r.m.s. measuring range / resolution: 6,000 V / 0.001 V, 60.00 V / 0.01 V, 600.0 V / 0.1 V
Continuity test range: 600 Ω
Resistance measuring range / resolution: 600.0 Ω / 0.1 Ω, 6,000 kΩ / 0.001 kΩ, 60.00 kΩ / 0.01 kΩ, 600.0 kΩ / 0.1 kΩ, 6,000 MΩ / 0.001 MΩ, 40.00 MΩ / 0.01 MΩ
Diode test range / resolution: 2.00 V / 0.001 V
Capacity measuring range / resolution: 1000 nF / 1 nF, 10.00 μF / 0.01 μF, 100.0 μF / 0.1 μF, 9999 μF / 1 μF, 100 μF to 1000 μF
LoZ capacitance range: 1 nF to 500 μF
AC amps true effective (45 Hz to 500 Hz) range / resolution: 6,000 A / 0.001 A, 10.00 A / 0.01 A (20 A continuous overload max. 30 seconds)
DC ampere range / resolution: 6,000 A / 0.001 A, 10.00 A / 0.01 A (20 A continuous overload max. 30 seconds)
Hz (V or A input) Range / resolution: 99.99 Hz / 0.01 Hz, 999.99 Hz / 0.1 Hz, 9.999 kHz / 0.001 kHz, 50 kHz / 0.01 kHz
Large white LED backlight for working in poorly lit areas
Min / max / mean value for recording signal fluctuations
All inputs are protected according to CE and EN 61010-1 CAT III 600 V. UL, CSA and TÜV approval as well as VDE.
Weight 0.55 kg
Dimensions: W 84 mm x H 167 mm x D 46 mm
3 year guarantee

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	2583583
Backlight:	Yes
Basic precision:	3 %
Capacity measuring range:	1000 nF - 9999 µF
Current measuring range AC/DC:	6A - 10A / 6A - 10A
Data memory / logger:	No / No
Dimensions (L x W x H) (mm):	167 x 84 x 46
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	6000
Electrical safety:	CAT III 600 V
Frequency measuring range:	99,99 Hz - 50 kHz
Min. / Max. Recording:	Yes / Yes
Model:	FLUKE-115 EUR
Number of positions:	4
Resistance measuring range:	600 Ω - 40 MΩ
Temperature measurement ( PT100 / Type K / Type J):	No
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	600 mV - 600 V / 600 mV - 600 V
Warranty (years):	3
Weight (kg):	0.55

Description

115 | Multimeter, handheld, TRMS 4 digits, CAT III / 600 V

Designed by electricians. Designed by Fluke. Compact true rms digital multimeter for field technicians. The Fluke 115 is the solution for a wide variety of electrical and electronic measurement tasks.

Lieferumfang

Multimeter
battery
Test leads
Manual
