Teledyne FLIR ONE EDGE PRO | Thermal imaging camera, 120 x 160 px, for iOS and Android (11002-0201)
Manufacturer number: 11002-0201
€499.00
Teledyne FLIR ONE Edge Pro | Thermal imaging camera for Android and iOS devices, 120 x 160 px (19,200 temperature measuring points) with MSX and VividIR technology for pin-sharp thermal images and a temperature range from -20° to 400°C.
- Thermal and visual camera with MSX technology for razor-sharp thermal images
- VividIR™ image processing for great image detail and sharpness
- Thermal sensor: 12 µm pixel size, 8 - 14 µm spectral range
- Thermal image resolution: 160 × 120 px (19,200 temperature measurement points)
- Visual image resolution: 640 x 480
- HFOV/VFOV: 54° x 42°
- Frame Rate: 8.7Hz
- Focus: fix 30 cm to infinity
- Object temperature range -20°C – 400°
- Accuracy ± 3°C or ± 5% of the difference between ambient and scene temperature
- Warming time 60s after boot up when the camera is in the temperature range of 15°C and 35°C and the scene is within 5°C to 120°C.
- Emission Settings: Matte, Semi-Matte, Satin, Glossy
- Certification: RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU
- Specified ambient temperature range: -10°C - 50°C, with battery charging: 0°C - 45°C
- Temperature range when switched off: -40°C - 70°C
- Mechanical shock/fall height max: 2m
- Dimensions: W 35 × H 37.5 × D 149 mm
- Weight: 153g
- Wireless connection to iOS and Android devices
- Charging via USB-C socket (5V/1A)
- Battery charging time: 60-90 min
- Battery life: about 1.5 hours
Technical Data
Article number: | 11002-0201 |
---|---|
Model: | One EDGE PRO |
Resolution in pixels: | 160 x 120 |
Temperature measuring points: | 19200 |
Thermal sensitivity (mK): | 70 |

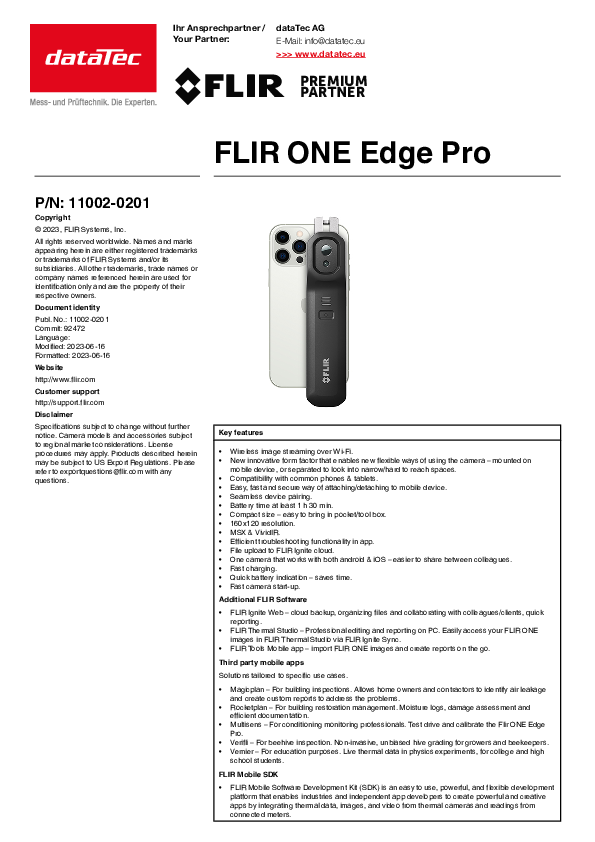

Documents & Downloads
Description
ONE EDGE PRO | Thermal imaging camera, 120 x 160 px, for iOS and Android (11002-0201)
Turn your smart device into a powerful thermal imaging tool with the FLIR ONE Edge Pro. The thermal imager connects wirelessly to your smart devices to inspect surface temperatures. Fully compatible with all iOS and Android smartphones and tablets. The FLIR ONE Edge Pro works with all your smart devices regardless of operating system, size or updates.
Always keep an eye on the ad! The wireless thermal imaging camera allows measurements to be taken from any angle or around obstacles, if required. Measurements can be taken reliably and safely even in hazardous areas. Your thermography measuring device feels familiar in your hand. For convenient, one-handed operation, simply snap the FLIR ONE Edge Pro onto your phone or tablet. Easily record JPEG thermal images or MP4 videos. The video signal image processing VividIR and the innovative imaging process FLIR MSX, which enriches data from the high-resolution thermal sensor with visual details, deliver particularly insightful and understandable results. The robust device measures reliably in a range from -20 °C to 400 °C.
For efficient team work, simply upload images and videos from your FLIR ONE Edge Pro to the cloud with FLIR Ignite, where you can edit, organize and share the data.
With the FLIR ONE Edge Pro you have the right instrument at hand to solve your measurement task, be it in the field of manufacturing, maintenance or the maintenance of plants and buildings.
