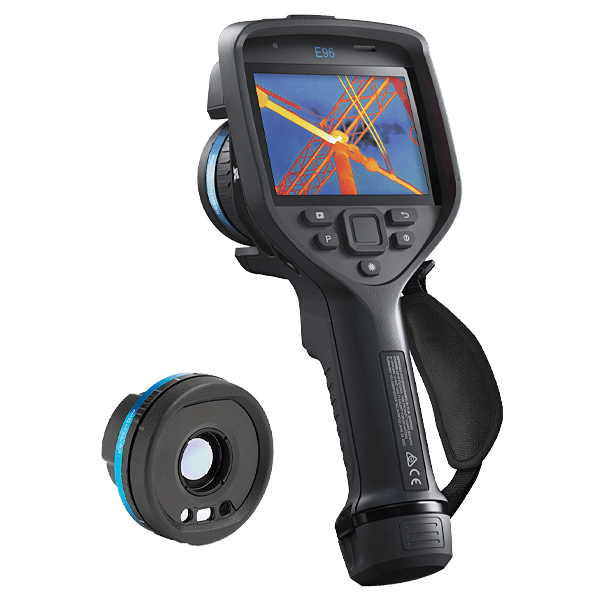

Teledyne FLIR E96 | Thermal imaging camera 640x480px 14°/24° DUAL FOV, 30Hz, up to +1500°C, 50mK, MSX (90208-0101)

Name: E96 | Thermal imaging camera 640x480px 14°/24° DUAL FOV, 30Hz, up to +1500°C, 50mK, MSX (90208-0101)
Brand: Teledyne FLIR
SKU: 90208-0101
Price: 13999.0 EUR
Availability: OutOfStock

Manufacturer number: 90208-0101

Delivery time upon request

€13,999.00

or choose one of the following options:

Product inquiries Request education-price

Teledyne FLIR 90208-0101 | E96 thermal imaging camera Exx series, with 1.2 million UltraMax temperature measuring points (640 x 480 px), dual FOV 14° / 24°, MSX technology, -20°C to + 1,500°C, thermal sensitivity < 50 mK, refresh rate 30 Hz , autofocus, reporting software.

Display: 640 x 480px touchscreen
IR resolution: 640 x 480px
UltraMax: 1,200,000px
MSX: Yes
Built-in digital camera: 5 MP including built-in LED light
Temperature range: -20°C – 120°C || 0°C – 650°C || 300°C - 1,500°C
Accuracy: ±2°C / ±2%
Focus: Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast, Manual
Digital Zoom: 1-8 continuously

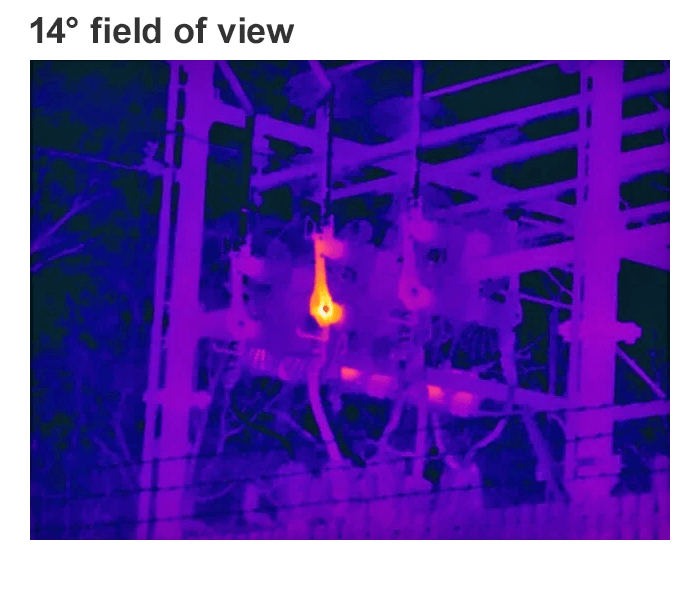

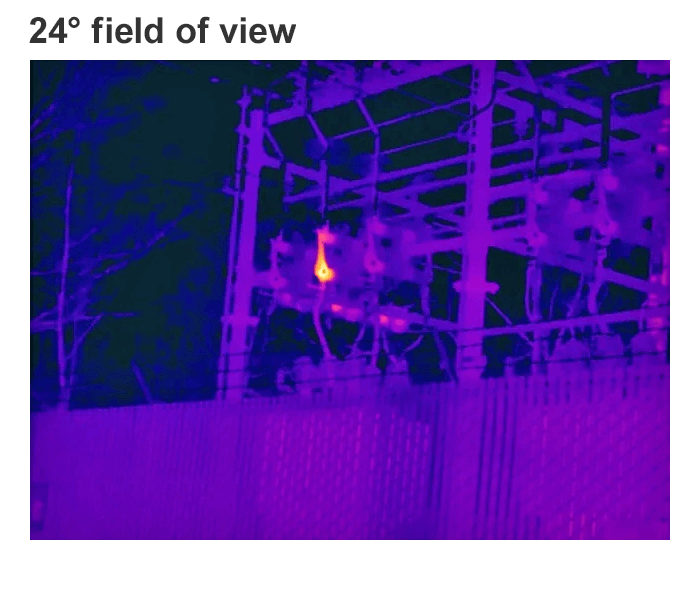

Lens: Dual FOV 14° / 24° lens with two fields of view
Software integration: Flir Thermal Studio || Flir Research Studio || For Ignite
Max. battery life: >2.5 h

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	90208-0101
Model:	E96 DUAL FOV
Resolution in pixels:	640 x 480
Temperature measuring points:	307200
Thermal sensitivity (mK):	50

Description

E96 | Thermal imaging camera 640x480px 14°/24° DUAL FOV, 30Hz, up to +1500°C, 50mK, MSX (90208-0101)

The Flir thermal imaging camera E96 of the EXX series helps to quickly uncover thermal problems in electrical and electronic systems, identify mechanical faults and carry out preventive maintenance measures.

The object is examined holistically, pixel by pixel (each pixel with its own temperature information) and provides the diagnostic results immediately. The fully equipped one-hand infrared camera with built-in digital camera combines an infrared and real image with the MSX picture-in-picture function : A daylight image is overlaid by the radiometric infrared image at the same time. In this way, critical problems can be identified even faster and more precisely.

The measurements/thermographic images are saved as JPG with fully radiometric measurement data per pixel.

The FLIR E96 supports FLIR Inspection Route and allows integration of FLIR Thermal Studio and FLIR Research Studio softwares . FLIR Inspection Routes guides the user along a predefined route of inspection points, allowing them to collect images and data in a structured way. FLIR Ignite enables E96 images to be automatically uploaded directly from the camera to the cloud for easy and secure storage and sharing.

Accessoires (5 products )

Teledyne FLIR T300341

FLIR Thermal Studio Standard 12 Month License

Delivery time upon request

€229.00

Teledyne FLIR T300243

FLIR Thermal Studio Pro 12 month license

3 in stock. Ready to ship in 1 business day

€459.00

Teledyne FLIR T300369

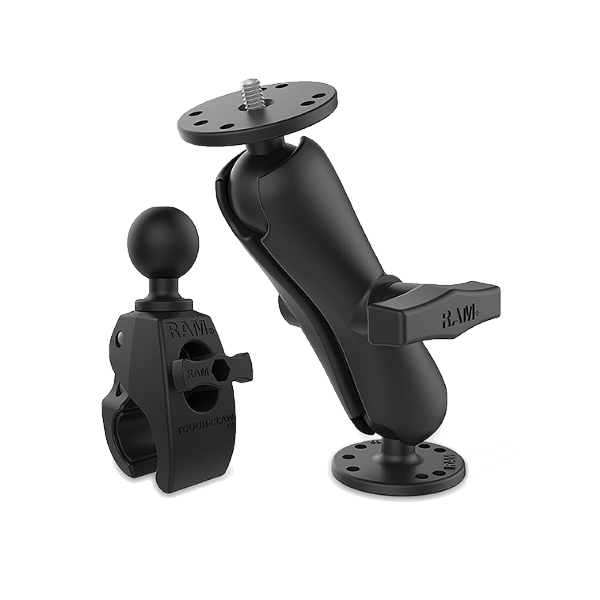

Mounting Kit for FLIR Exx, T5xx, T8xx series

Delivery time upon request

€139.00

Teledyne FLIR T911998

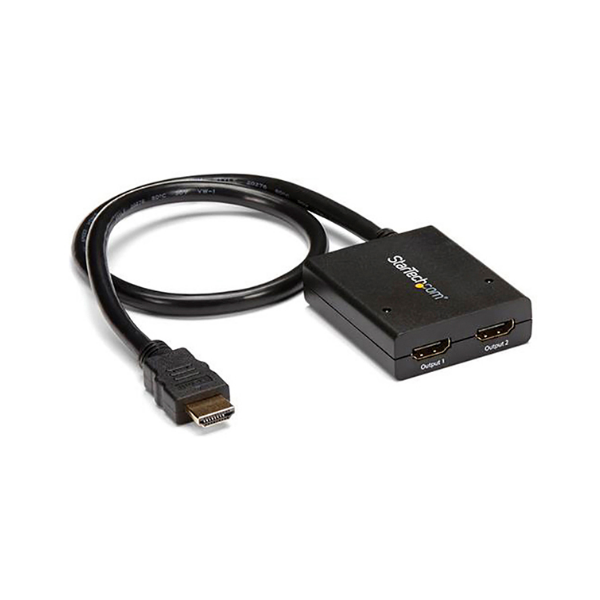

HDMI 2-port video splitter for FLIR Exx, T5xx, T8xx series

Delivery time upon request

€129.00

Teledyne FLIR T300805

80° wide angle lens for thermal imaging cameras of the Axxx, Exx, T5xx, & T8xx series

Delivery time upon request

€4,199.00

Alternate products (9 products )

Teledyne FLIR E96

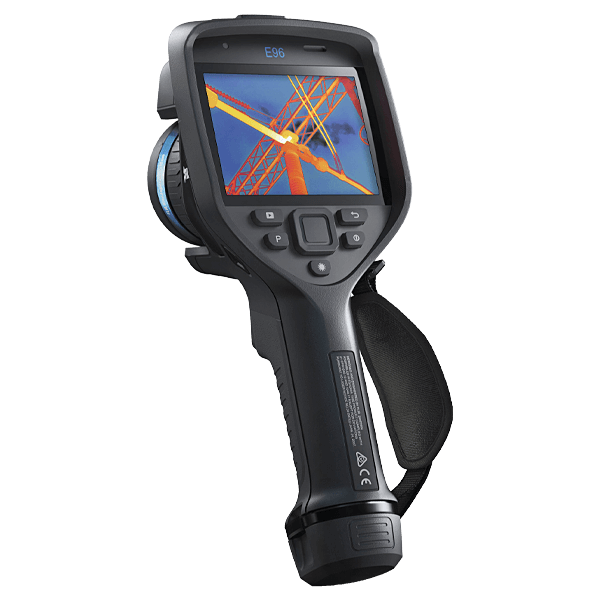

Thermal imaging camera 640x480px 14° optics, MSX, autofocus, Thermal Studio reporting software (90201-0101)

Delivery time upon request

€12,599.00

Teledyne FLIR E96

Thermal imaging camera 640x480px 24° optics, MSX, autofocus, Thermal Studio reporting software (90202-0101)

Delivery time upon request

€12,599.00

Teledyne FLIR E96

Thermal imaging camera 640x480px 42° optics, MSX, autofocus, Thermal Studio reporting software (90203-0101)

2 in stock. Ready to ship in 1 business day

€12,599.00

Teledyne FLIR E96

Thermal imaging camera 640x480px 14°+ 24° optics, MSX, autofocus, reporting software (90204-0101)

Delivery time upon request

€14,299.00

Teledyne FLIR E96

Thermal imaging camera 640x480px 24°+42° optics, MSX, autofocus, reporting software (90205-0101)

1 in stock. Ready to ship in 1 business day

€14,299.00

Teledyne FLIR E96

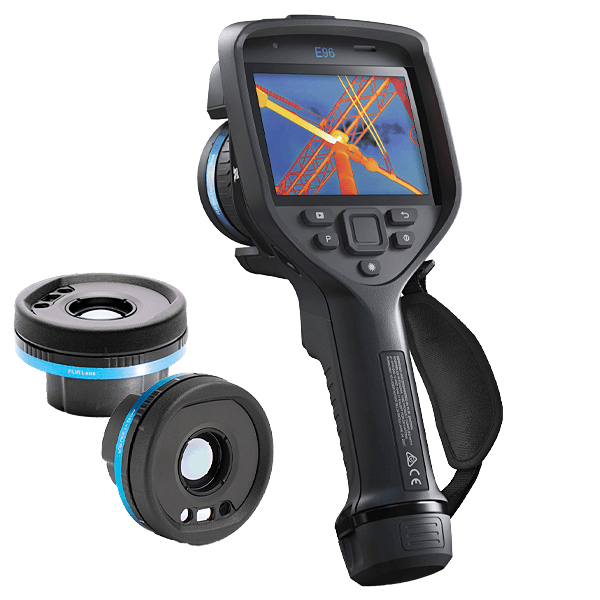

Thermal imaging camera 640x480px 14° + 24°+ 42° optics, MSX, autofocus, reporting software (90206-0101)

Delivery time upon request

€15,599.00

Teledyne FLIR E96

Thermal imaging camera 640x480px 14° + 42° optics, MSX, autofocus, reporting software (90207-0101)

Delivery time upon request

€14,299.00

Teledyne FLIR E96

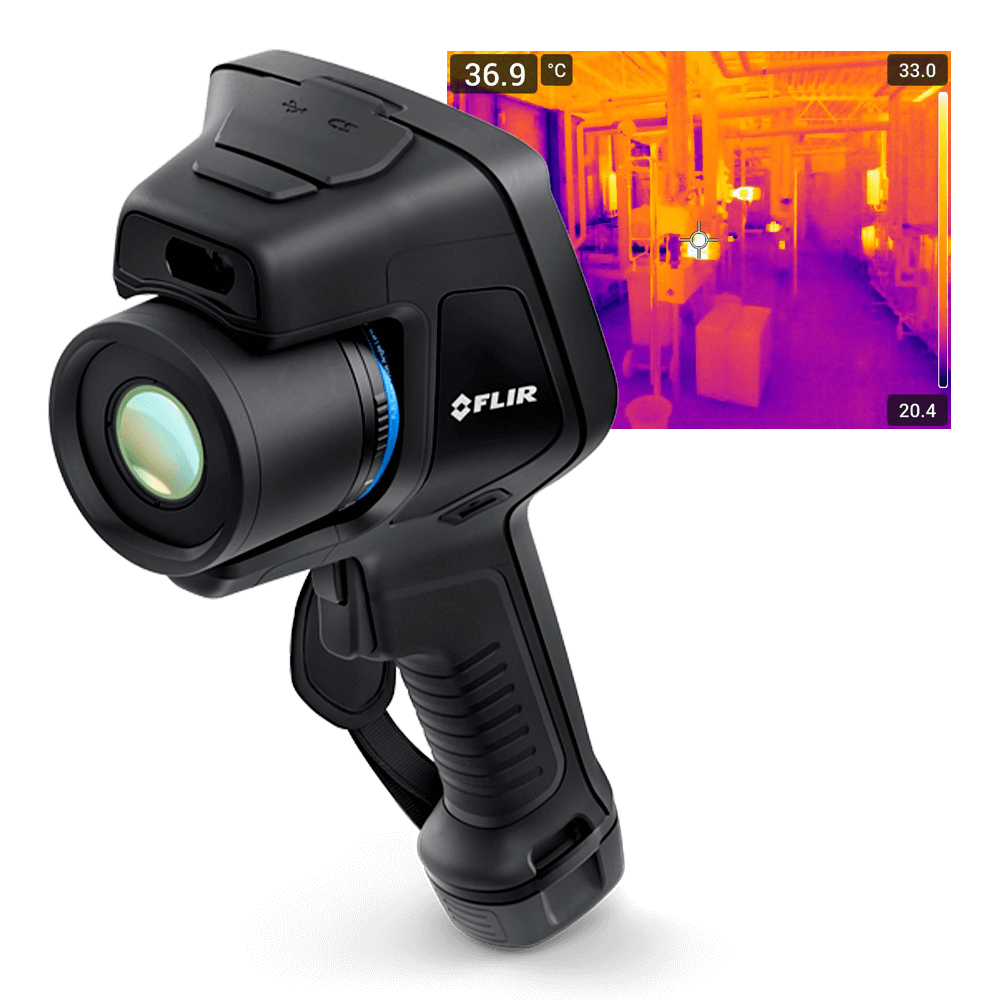

Thermal imaging camera 640x480px 80° optics, MSX, autofocus, Thermal Studio reporting software (90209-0101)
