Teledyne FLIR ETS320 | Thermal camera system, 320 x 240 px

Name: ETS320 | Thermal camera system, 320 x 240 px
Brand: Teledyne FLIR
SKU: 639501001
Price: 2849.0 EUR
Availability: InStock

Manufacturer number: 639501001

4 in stock. Ready to ship in 1 business day

€2,849.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

FLIR 639501001 | ETS320 thermal imaging solution / stationary thermal imaging camera for checking electronic components with 76,800 temperature measuring points and a temperature measuring range from -20 ° C to 250 ° C with comfortable PC reporting software FLIR Tools + for the immediate execution of analyzes including time / temperature curve measurements.

320 x 240 IR resolution (76,800 temperature measuring points)
Thermal sensitivity / NETD: <0.06 ° C
Field of view (FOV): 45 ° x 34 °
Fixed focus distance: 70 mm ± 10 mm
Measuring accuracy: ± 3 ° C
Measuring point: Central measuring point
Area: field with max./min.
Emissivity correction: Variable from 0.1 to 1.0
Emissivity table: Table with predefined materials
Correction of the reflected ambient temperature: Automatic, based on the input of the reflected temperature
Image file formats: Standard radiometric JPEG , including 14-bit measurement data
Radiometric IR video streaming : Fully dynamic on PC (FLIR Tools / Tools +) via USB
Non-radiometric IR video streaming: Uncompressed color video via USB
3-inch LCD display
Micro-USB interface: data transfer to and from PC / Mac
Power supply: Li-ion battery type, rechargeable in the camera
Housing: IP 40 (IEC 60529)
Camera weight including battery 575 g
Dimensions: base plate W 150 x D 220 mm, total height with mast: 300 mm
Max. Object height (70mm focus distance considered) under camera: 176 mm

Technical Data

Article number:	639501001
Dimensions (L x W x H) (mm):	220 x 150 x 300
Focus:	fixed
Frame rate (Hz):	9
Image enhancement technology:	No
Image memory:	internal
Integrated viewfinder:	No
Interchangeable lenses:	No
Interfaces:	USB
Max. field of view (FOV):	45° x 34°
Model:	ETS320
Resolution in pixels:	320 x 240
Smallest resolution IFOV (mrad):	2.6
Temperature measuring points:	76800
Temperature measuring range:	-20°C to +250°C
Thermal sensitivity (mK):	60
Warranty (years):	2
Weight (kg):	1.8

Description

ETS320 | Thermal camera system, 320 x 240 px

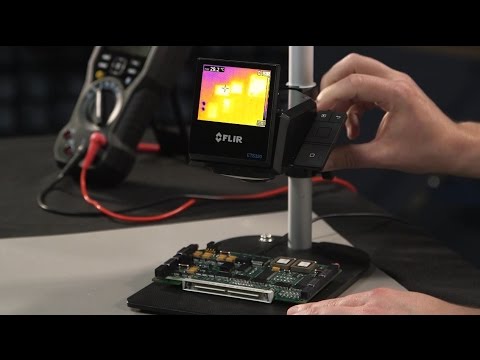

The stationary FLIR ETS320 thermal imager in microscope design is an inexpensive solution, with which you can shorten the test duration and improve your product design for the assessment of electronic boards and devices. Regardless of whether in the area of research and development or product tests: heat is always an important indicator of how well a system works. The ETS320 helps engineers and test engineers to acquire precise and reliable data within a few seconds and to analyze it quickly.

Shorten your test times The FLIR ETS320 WBK puts an end to the guesswork involved in thermal checks and ensures that hot spots and potential sources of error can be quickly discovered.

Sensitive enough to detect changes in temperature of less than 0.06 ° C
Comprehensive temperature measuring range from -20 ° C to 250 ° C to quantify the heat development and distribution
When measuring small components, it gets by with a small dot of 170 μm (micrometer) per pixel

Improve your product design The FLIR ETS320 thermal imaging camera accelerates design improvements and shortens product development time by recognizing design errors that are noticeable through heat development.

IR sensor with a resolution of 320 x 240 pixels offers 76,800 points for non-contact temperature measurements
Real 45 ° wide field of vision for comprehensive initial tests makes potential problems visible
Measuring accuracy of ± 3 ° C improves the quality assurance and factory acceptance of printed circuit boards

Specially developed for workflows in the laboratory With its simplified functions, the ETS320 was developed for hands-free execution of laboratory tests so that users do not have to worry about operating the camera, but can concentrate entirely on their work.

Mast bracket included for quick and easy setup
3-inch LCD display immediately delivers razor-sharp thermal images
FLIR Tools + software for instant analysis, including time / temperature history measurements

Lieferumfang

Scope of delivery camera, mounting, stand, power supply unit, USB cable, FLIR tools + evaluation software (in connection with the Flir PC software TOOLS + you can record and edit radiometric sequences over time and create meaningful, professional reports)
