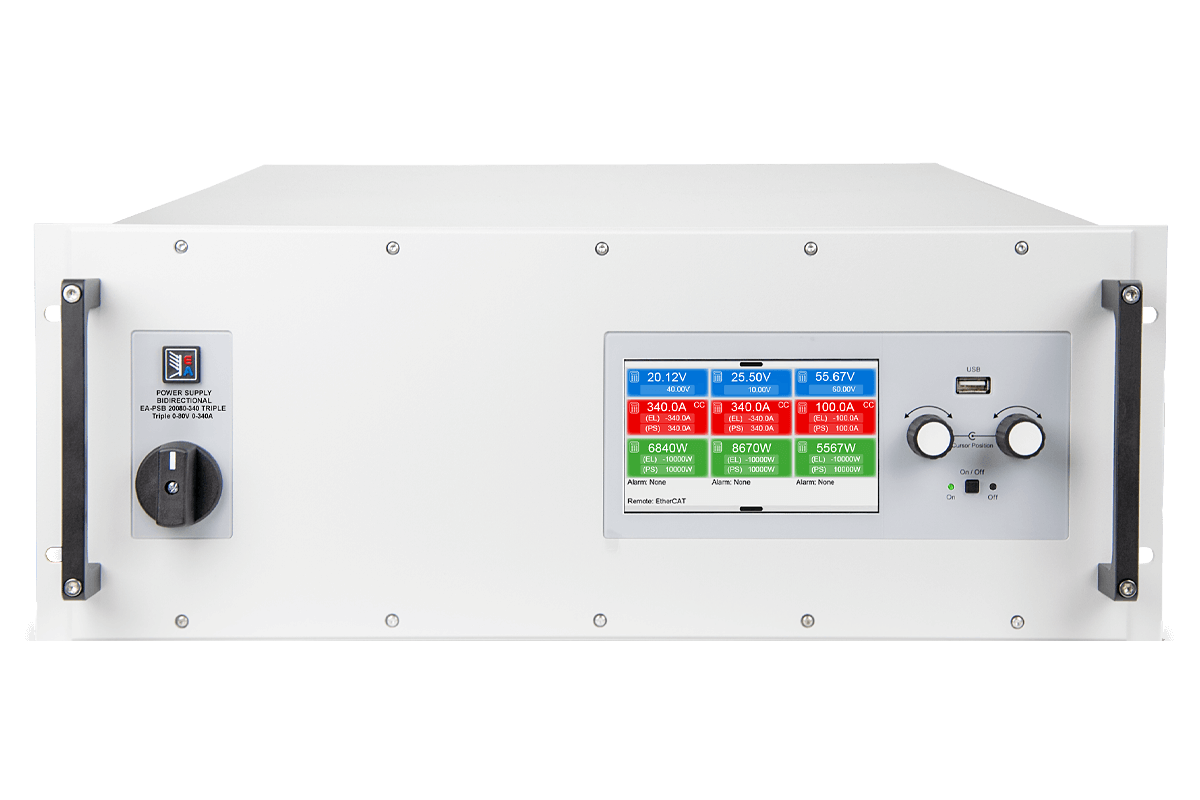

EA Elektro-Automatik PSB20360-80TRIPLEWC | DC power supply unit, bidirectional, 3 channel, 4U, 30kW, water-cooled, 360V/3x80A/3x10kW, LAN, USB, EtherCAT, CAN FD

Manufacturer number: PSB20360-80TRIPLEWC

PSB20360-80TRIPLEWC
PSB20360-80TRIPLEWC
PSB20360-80TRIPLEWC
PSB20360-80TRIPLEWC
PSB20360-80TRIPLEWC
PSB20360-80TRIPLEWC
PSB20360-80TRIPLEWC
PSB20360-80TRIPLEWC
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

EA Elektro-Automatik PSB20360-80TRIPLEWC | DC power supply unit, bidirectional, 3 channel, 4U, 30 kW, water-cooled, 360 V / 3 x 80 A / 3 x 10 kW / LAN, USB, EtherCAT, CAN FD.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.72 MB

Description

PSB20360-80TRIPLEWC | DC power supply unit, bidirectional, 3 channel, 4U, 30kW, water-cooled, 360V/3x80A/3x10kW, LAN, USB, EtherCAT, CAN FD

The PSB 20000 Triple Series from EA Elektro-Automatik is a groundbreaking development in the field of programmable bidirectional DC power supplies. With three independent channels, this series offers a flexible and powerful solution for modern test requirements in fast-growing industries such as automotive, renewable energy and more. Its compact design in 3U and 4U versions and optional water cooling make it versatile while ensuring high performance and energy efficiency.

Product features of the PSB20000 series:

  • Voltage range: 0 - 920 V
  • Current rating: Up to 3 x 170 A (3U version) // 340 A (4U version)
  • Power per channel: Up to 5 kW (3U version) // 10 kW (4U version)
  • Total power: Up to 15 kW (3U version) // 30 kW (4U version)
  • Efficiency: Over 96% in regenerative mode with energy return to the grid
  • Communication interfaces: USB, Ethernet, EtherCAT, CAN FD and more
  • Active power factor correction: typical value of 0.99
  • Energy saving: high level of energy recovery and reduced operating costs

The PSB20360-80TRIPLEWC variant presented here measures 4 U and is water-cooled. It has a total output of 30 kW, a maximum voltage of 360 V, 3 x 80 A current and 3 x 10 kW power.

The PSB 20000 Triple Series is ideal for applications that require high precision and efficiency:

Automotive industry:

  • Testing electrical components of modern vehicles, including motors, inverters and onboard chargers.
  • Supporting high-voltage and advanced energy systems.

Photovoltaics (PV):

  • Simultaneous testing of PV inverters, batteries and other components with the three channels.
  • MPP tracking to determine the efficiency of PV systems.

Research and development:

  • Use in battery and fuel cell technology.
  • Applications in process, wind and solar energy as well as telecommunications.
