EA Elektro-Automatik PSB10360-403U | DC power supply unit PSB 10000, bidirectional, 1 channel, 360V / +/-40A / 5kW, integrated function generator (DT2429_2403_L)

Manufacturer number: DT2429_2403_L

PSB10360-403U
1 in stock. Ready to ship in 1 business day

€10,350.00

% €11,500.00 (10% saved)

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

Special item - EA Elektro-Automatik PSB 10360-40 | Bidirectional DC power supply unit 3U, PSB10000 series, 1 channel, 360V / +/-40A / 5,000W, integrated function generator.

  • Number of channels: 1
  • Rated Voltage Range: 0-360V
  • Residual ripple CV rms: ≤55 mV BW 300 kHz
  • Residual ripple CV pp: ≤320mV BW 20MHz
  • Rated Current Range: 0-40A
  • Power: 0 - 5,000 W
  • Nominal resistance range: 0.3Ω - 520Ω
  • Frequency: 45-66Hz
  • Power factor: >0.99
  • leakage current:
  • Overvoltage category: 2
  • Pollution degree: 2
  • Protection functions: OVP, OCP, OPP, OT
  • Digital interfaces: USB, Ethernet (100 MBit) for communication, 1x USB host for data acquisition
  • Expandable interfaces: CAN, CANopen, RS232, ModBus TCP, Profinet, Profibus, EtherCAT, add. Ethernet with one or two ports
  • Analog interface: 15-pin D-Sub

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.24 MB

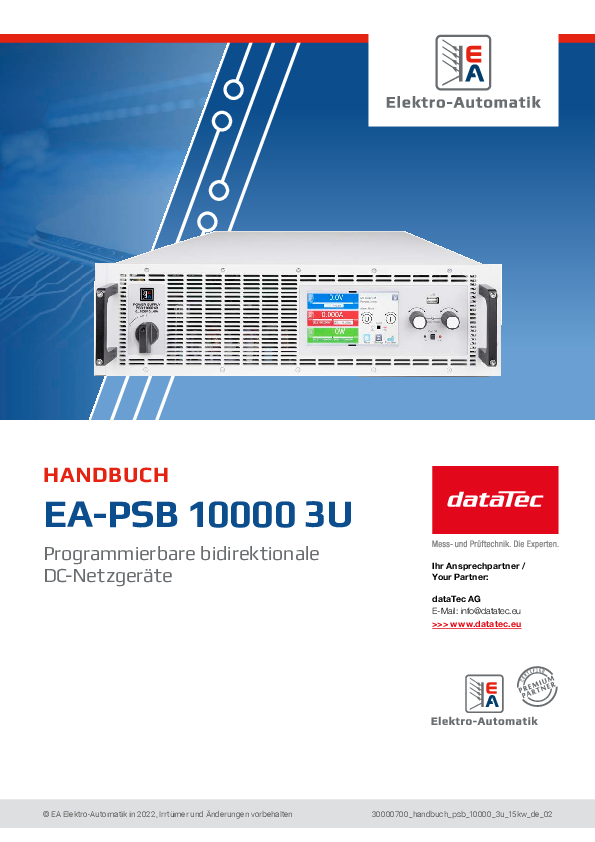

Userguide
pdf | 4.32 MB

Description

PSB10360-403U | DC power supply unit PSB 10000, bidirectional, 1 channel, 360V / +/-40A / 5kW, integrated function generator (DT2429_2403_L)

The bidirectional DC laboratory power supplies of the EA Elektro-Automatik PSB 10000 series are two-quadrant power supply units that can take on the function of both a power supply and an electronic load. In load operation, the DC power supplies work regeneratively and feed the energy back into the local power grid with an efficiency of over 96%. This efficient energy recovery reduces your costs.

The EA PSB 10000 series includes single-phase and three-phase devices that can serve almost all mains voltages worldwide thanks to their wide input range. The DC voltages and currents are geared towards applications, the spectrum ranges from 0 - 10 V to 0 - 2000 V and from 0 - 6 A to 0 - 1000 A in one device. The DC power supplies function as a flexible output stage with a constant power characteristic, so-called autoranging, as well as a wide voltage, current and power range. All devices have a master-slave bus to realize higher power and currents. With 64 devices connected in parallel, this enables a system to be set up that provides up to 1920 kW and 64,000 A.

All models in the PSB 10000 series have an integrated function generator. This can be used to easily call up curves such as sine, triangle, rectangle and trapezoid. Voltage and current curves can be freely programmed using a ramp function and an arbitrary waveform generator. Test sequences can be saved for recurring tests and reloaded as required, saving valuable time.

Typical applications for bidirectional power supply units include testing the electrical properties of a battery. The wide range of applications includes cell, module or pack tests, determining the SOH (State-Of-Health) for a second-life classification and the end-of-line test (EOL). Other applications include the simulation of batteries as individual cells, modules or in packs. With the help of these simulations, both the energy storage system and the components that are supplied by it can be optimally designed. The DC power supply units in the PSB 10000 series can also be used to test the electrical properties of fuel cells, fuel cell stacks and fuel cell systems. They generate highly accurate and reproducible results in all electrical modes. To test the resistance, performance and service life of a fuel cell quickly and cost-effectively, users can easily integrate the devices into an automated test system. The PSB 10000 series is also ideal as a test system for PV inverters, as it has the necessary simulation unit for solar cells.

The PSB 10360-40 variant of the EA PSB 10000 series presented here measures 3 U (3 U) and has 1 channel, 360 V / +/-40 A / 5,000 W and, like all models in the series, an integrated function generator.

General features of the series:

  • Wide input range, 208 V - 4 80 V +10 % 3ph AC
  • Active power factor correction, typically 0.99
  • Bidirectional power supply, two-quadrant with source and sink
  • Regenerative in load operation with energy feedback to the grid
  • Very high efficiency up to over 96%
  • High performance with up to 15 kW per unit
  • Voltage from 0 - 10 V to 0 - 2.000 V
  • Current from 0 - 20 A to 0 - 510 A
  • Flexible power-controlled DC input/output stages (autoranging)
  • Control mode CV, CC, CP, CR with fast transition
  • Digital control, high resolution with 16bit ADCs and DACs
  • Color 5" TFT display, touch function and intuitive operation
  • Galvanically isolated share bus for parallel operation of all power classes in the 10000 series
  • Master-slave bus for parallel operation, up to 64 devices of all power classes in the 10000 series
  • Integrated function generator with predefined curves
  • Predefined automotive test sequences for LV123, LV124 and LV148
  • Integrated battery test, battery simulation and fuel cell simulation
  • Photovoltaic test mode, MPPT, DIN EN 50530
  • Standard interfaces: USB, Ethernet, analog, USB host, master-slave bus, share bus
  • Optional interfaces: CAN, CANopen, RS232, Profibus, EtherCAT, Profinet with one or two ports, Modbus with one or two ports, additional Ethernet with one or two ports
  • Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

Please note: Special items / stock items are in their original packaging and unused. All special items have 1 year warranty. Subject to prior sale. The configuration of a special item cannot be changed. The calibration of a special item may no longer be up to date. If you would like an up-to-date calibration, please contact our experts.

Call us, we will be happy to advise you personally:

+49 (0)7121 / 51 50 50

You can find the current special items list as a PDF download here:

>>> To the dataTec special items list
