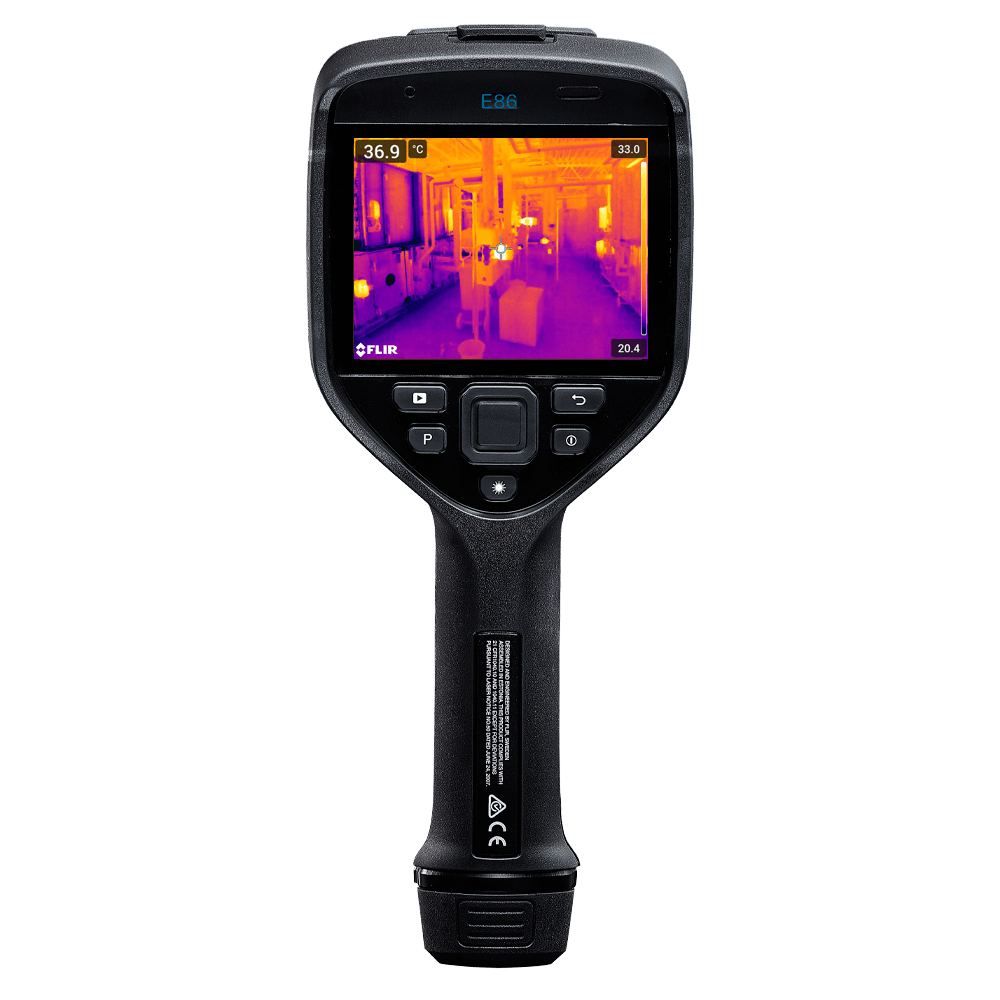

Teledyne FLIR E86 | Thermal imaging camera 464x348px 80° optics, MSX, autofocus, Thermal Studio reporting software (78519-1301)

Name: E86 | Thermal imaging camera 464x348px 80° optics, MSX, autofocus, Thermal Studio reporting software (78519-1301)
Brand: Teledyne FLIR
SKU: 78519-1301
Price: 14149.0 EUR
Availability: OutOfStock

Manufacturer number: 78519-1301

Delivery time upon request

€14,149.00

or choose one of the following options:

Product inquiries Request education-price

Teledyne FLIR 78519-1301 | E86 thermal imaging camera Exx series, with 645,888 UltraMax temperature measuring points (464 x 348 px), 80° lens (interchangeable), MSX technology, -20°C to + 1,500°C, thermal sensitivity < 30 mK.

Display: 640 x 480 px touchscreen
IR resolution: 464 x 348 px
UltraMax: 645,888 px
MSX: Yes
Built-in digital camera: 5 MP including built-in LED light
Temperature range: -20°C – 120°C || 0°C – 650°C || 300°C – 1,500°C
Accuracy: ±2°C / ±2%
Focus: Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast, Manual
Digital Zoom: 1 – 4 continuous
Lens: 80° | optionally available 14°, 24°, 42°, macro (2x)
Integrated report builder: voice annotations and GPS markings, on-screen text, drawing function directly on thermal image
Software Integration: Flir Thermal Studio || Flir Research Studio
Connections: USB, Bluetooth, Wi-Fi, DisplayPort
Meterlink: Yes
Max. battery life: >2.5 h

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Article number:	78519-1301
Model:	E86 80°
Resolution in pixels:	464 x 348
Temperature measuring points:	161472
Thermal sensitivity (mK):	50

Description

E86 | Thermal imaging camera 464x348px 80° optics, MSX, autofocus, Thermal Studio reporting software (78519-1301)

The Flir thermal imaging camera E86 of the EXX series helps to quickly identify thermal problems in electrical and electronic systems, identify mechanical faults and carry out preventive maintenance measures.

The object is examined holistically pixel by pixel (each pixel with its own temperature information) and provides immediate diagnostic results. The fully equipped one-handed infrared camera with built-in digital camera combines an infrared and real image with the MSX picture-in-picture function : a daylight image is simultaneously overlaid by the radiometric infrared image. This means critical problems can be identified even faster and more precisely.

The measurements/thermography images are saved as JPG, with fully radiometric measurement data per pixel.

The FLIR E86 supports FLIR Inspection Route and enables integration of the FLIR Thermal Studio and FLIR Research Studio softwares . FLIR Inspection Routes guides the user along a predefined route of inspection points so they can collect images and data in a structured manner.
