Chroma 63303A | Electronic load module for mainframes 633xA, 80V / 60A, 300W high speed

Manufacturer number: 63303A

Chroma 63303A
Delivery time upon request

€1,840.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

Chroma 63303A | High-speed DC load module, 60A / 80V / 300W for mainframe 6332A / 6334A.

  • Output: 2 ranges: 30 W, 0 - 6 A and 300 W, 0 - 60 A
  • Voltage range: 0 - 80 V
  • Improved load operating speeds for automatic test system integration
  • Synchronous parallel connection control, which enables synchronous load control in static and dynamic load mode up to 6000 W.
  • Up to 8 channels in one mainframe suitable for testing multiple SMPS outputs
  • GPIB / RS-232 / USB interface
  • CC, CR, CV, CP modes of operation
  • Dynamic loading with clock frequencies up to 20 kHz
  • Programmable current rise rate up to 10 A / μs
  • Only 1 V is required to take up nominal current
  • Separate measuring instruments installed
  • Transient reaction simulation of the power supply load in real time and measurement output
  • 16-bit precise voltage and current measurement with dual range
  • Remote sensing ability
  • Short circuit test
  • Self-test when switching on
  • CE marking
  • Dimensions: Height: 172 mm x width: 82 mm x depth: 489.5 mm
  • Slot width: 1 slot
  • Weight: 4.2 kg
  • 2 year guarantee

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

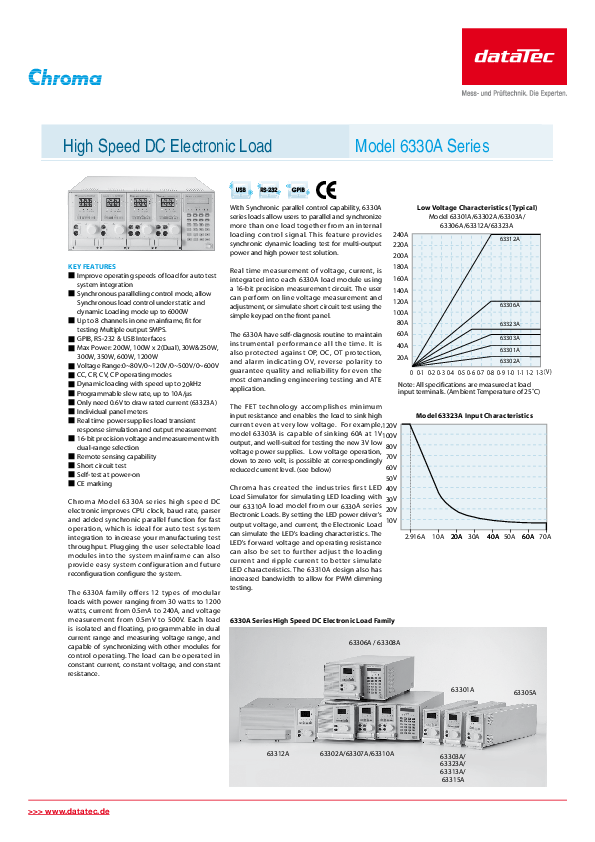

Datasheet
pdf | 1.32 MB

Description

63303A | Electronic load module for mainframes 633xA, 80V / 60A, 300W high speed

Chromas 6330A Series High Speed DC Backup Load improves CPU clock, baud rate, parser and additional synchronous parallel function for fast operation, which is great for integrating the automatic test system to increase your test throughput during manufacturing . By connecting the user-selectable load modules in the mainframe, the system configuration and future reconfigurations of the system can also be facilitated.

The load is isolated and potential-free, can be programmed in the dual current range and measuring voltage range and is able to synchronize itself with other modules for control operation. The load can be operated with constant current, constant voltage and constant resistance.

With the synchronous parallel control function, the loads of the 6330A series enable users to operate and synchronize more than one load together in parallel via an internal load control signal. This feature provides synchronous dynamic load testing for a solution to test multi-output, high-performance performance.

Real-time voltage and current measurements are built into each 6330A load module with a 16-bit precision measurement circuit. The user can use the easy-to-use keypad on the front panel to make online voltage measurements and settings or simulate a short circuit test. The 6330A Series load has a self-diagnostic routine to maintain instrument performance on an ongoing basis. It also offers protection against overcurrent, power, temperature (OP, OC, OT) and alarm output in the event of overvoltage (OV), polarity reversal to ensure quality and reliability even with the most demanding technical tests and ATE applications.

FET technology ensures minimal input resistance and enables the load to reduce high current even at very low voltage. The model 63303A is e.g. B. able to reduce 60 A with 1 V output, which is very suitable for testing the new 3 V low-voltage power supplies. Low voltage operation down to zero volts is possible with a correspondingly reduced current level.
