Chroma 61607 | AC source, 3 kVA, 350 V, 15 to 2 kHz

Name: 61607 | AC source, 3 kVA, 350 V, 15 to 2 kHz
Brand: Chroma
SKU: 61607
Price: 19650.0 EUR
Availability: OutOfStock

Manufacturer number: 61607

Delivery time upon request

€19,650.00

or choose one of the following options:

Product inquiries

Chroma 61607 | Programmable AC source, single and three-phase, 3,000 VA output power, 0 to 350 V, DC / 15 to 2000 Hz, double power possible through parallel connection.

Suitable for 1- and 3-phase applications
AC output, 1 phase: 3,000 VA, 30 A / 15 A (I _RMS )
AC output, 3 phases: 1,000 VA, 10 A / 5 A (I _RMS ) per phase
DC output, 1 phase: 75% of the total power, 247.5 V / 495 V, 22.5 A / 11.25 A
Output voltage: 0 - 175 V / 0 - 350 V / auto
Output frequency: DC, 15-2000 Hz
Resolution: 0.1 V
Accuracy: 0.01%
Programmable parameters: voltage, current limit, current rise rate for variable voltages and frequencies
Various measurement functions: including RMS voltage, RMS current, peak current, inrush current, apparent power, reactive power, power factor, crest factor, THD
High output current crest factor: ideal for testing the inrush current
Leading edge and trailing edge control when switching on and off
TTL signal: shows the steady state of the output values after a change
Comprehensive protection functions: OVP, OCP, OPP and OTP
Optimal ease of use with the PC thanks to the optional Chroma Softpanel user interface
Parallel operation of two devices (master / slave) for an output power up to 6,000 VA

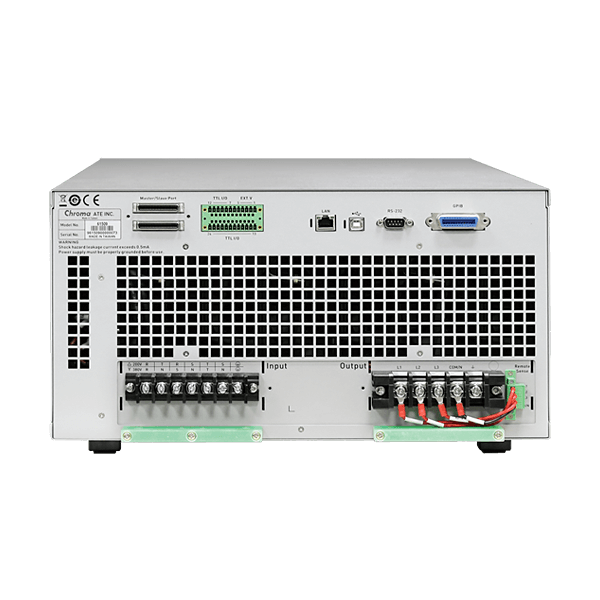

Interfaces: GPIB, RS-232, USB and Ethernet
Analog programming interface
Dimensions: W 425 x H 221.5 x D 680 mm, weight: 55 kg
2 year guarantee

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

AC input:	1P / 3P
AC output:	1P / 3P
Article number:	61607
DC output reversible:	AC Source
Dimensions (L x W x H) (mm):	680 x 425 x 221,5
Frequency range:	15 Hz - 2000 Hz
Grid simulation:	No
Interfaces:	USB, LAN, GPIB, RS-232
Mains feedback:	No
Measurement functions:	RMS V, I, Active, apparent, reactive power, Power factor, current crest factor, repetitive peak current, inrush current, distortion factor, harmonics
Model:	61607
Output power (kW):	3
PLD Testfunction:	No
Power factor:	0,97
Protective devices:	OVP, OCP, OPP, OTP, FAN
Weight (kg):	50
max. Power (A):	30
max. Voltage (V):	350

Documents & Downloads

Datasheet

pdf | 1.19 MB

Description

61607 | AC source, 3 kVA, 350 V, 15 to 2 kHz

With Chroma's powerful 61607 AC source, programmable output power allows you to replicate the conditions of an AC power supply. An optimized test environment with defined test parameters enables you to precisely characterize your electronic components and power electronics.

The AC power supply 61607 can generate single and three-phase output parameters and meets the latest test requirements in industry and trade - for demanding laboratory tests in design development or in quality assurance through to applications in mass production.

Your AC high-performance source for diverse precision measurements:

State-of-the-art PWM technology (pulse width modulation): for an output power of up to 3 kVA as well as 350 V and 15 to 2000 Hz; the output power can be doubled by connecting two devices in parallel
Extensive measurement applications: for the efficient determination of RMS voltage, RMS current, peak current, inrush current, apparent power, reactive power, power factor, crest factor, THD etc.
Optimal ease of use: Chroma Softpanel user interface with intuitive graphics for simple and convenient device control via PC; facilitates the efficient use of all available device functions for optimal test conditions
