Chauvin Arnoux P01651904 | CA 1954 thermal imaging camera 160 x 120 px, -20 ° - 250 ° C, Bluetooth, including reporting software (CA1954)

Name: P01651904 | CA 1954 thermal imaging camera 160 x 120 px, -20 ° - 250 ° C, Bluetooth, including reporting software (CA1954)
Brand: Chauvin Arnoux
SKU: P01651904
Price: 1998.0 EUR
Availability: OutOfStock

Manufacturer number: P01651904

Ready to ship in 5 to 10 business days

€1,998.00

or choose one of the following options:

Request a quote Product inquiries

Chauvin Arnoux P01651904 | CA 1954 thermal imaging camera 160 x 120 px, -20 ° - 250 ° C, Bluetooth, including reporting software.

Infrared sensor: 160 x 120 of the UFPA microbolometer type, 8 ~ 14 μm
Thermal sensitivity NETD: 0.08 K @ 30 ° C (0.08 ° C @ 30 ° C)
IFOV (spatial resolution): 4.4 mrad
Temperature range: -20 ° C to 250 ° C
Display types: thermal image, photo image with automatic parallax compensation, image overlay using PC software
Measuring aids: 1 manual cursor + 1 automatic detection + min / max / mean value display in the selected area + heat profile + isotherms with information on the dew point recorded via Bluetooth
Adjustable parameters: emissivity, ambient temperature, distance, rel. Humidity
Storage on µSD card with 2 GB (for approx. 4000 images), exchangeable for a maximum of 32 GB
Protection class: IP 54
Dimensions: 225 x 125 x 83 mm
Weight: 700g with batteries

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

P01651904 | CA 1954 thermal imaging camera 160 x 120 px, -20 ° - 250 ° C, Bluetooth, including reporting software (CA1954)

The Chauvin Arnoux thermal imaging camera CA 1954 was specially developed with a view to ease of use and it meets all requirements for building thermography, as well as for testing and maintenance work in electrical and mechanical systems:

Heat efficiency audits
Troubleshooting for thermal bridges, air leaks, damp areas, etc ...
Electrical maintenance: detection of defective contacts, load asymmetries ...
Mechanical maintenance: detection of wear points, engine overheating, lubrication problems, etc ...

The CA 1954 can be networked with other measuring instruments via Bluetooth without any problems, so that additional measured values from current clamps, environmental measuring devices, such as current, temperature, humidity, dew point, etc ... can be recorded at the same time.

Product features:

the camera is easy to hold and all functions can be operated with one hand
Exceptionally long battery life of 9 hours with standard NiMH or alkaline batteries
Networking with clamp-on current transformers, multimeters and environmental measuring devices to take additional measurements at the same time, such as current strength, other influencing variables or the dew point, in order to discover areas at risk of mold
Direct addition of voice comments to the images
Renaming of photo and thermal images according to the test location
Recording of the camera configurations depending on the type of application

Recommendations (4 products)

dataTec
TH_RT_250716

Basic seminar: Thermography / thermal imaging technology on July 16, 2025 in Reutlingen

Delivery time upon request

€549.00

dataTec
TH_RT_251203

Basic seminar: Thermography / thermal imaging technology on December 3rd, 2025 in Reutlingen

Delivery time upon request

€549.00

dataTec
TH_RT_251023

Basic seminar: Thermography / thermal imaging technology on February 23, 2025 in Reutlingen

Delivery time upon request

€549.00

dataTec
TH_RT_250521

Basic seminar: Thermography / thermal imaging technology on May 21, 2025 in Reutlingen

Delivery time upon request

€549.00

About the Manufacturer

Chauvin Arnoux

Chauvin Arnoux stands for highest quality and innovative, highly reliable test equipment in the fields of electrical safety testing, measurement of electrical quantities, power measurement, energy and fault analysis.

Chauvin Arnoux P01651904 | CA 1954 thermal imaging camera 160 x 120 px, -20 ° - 250 ° C, Bluetooth, including reporting software (CA1954)

Chauvin Arnoux P01651904 | CA 1954 thermal imaging camera 160 x 120 px, -20 ° - 250 ° C, Bluetooth, including reporting software.

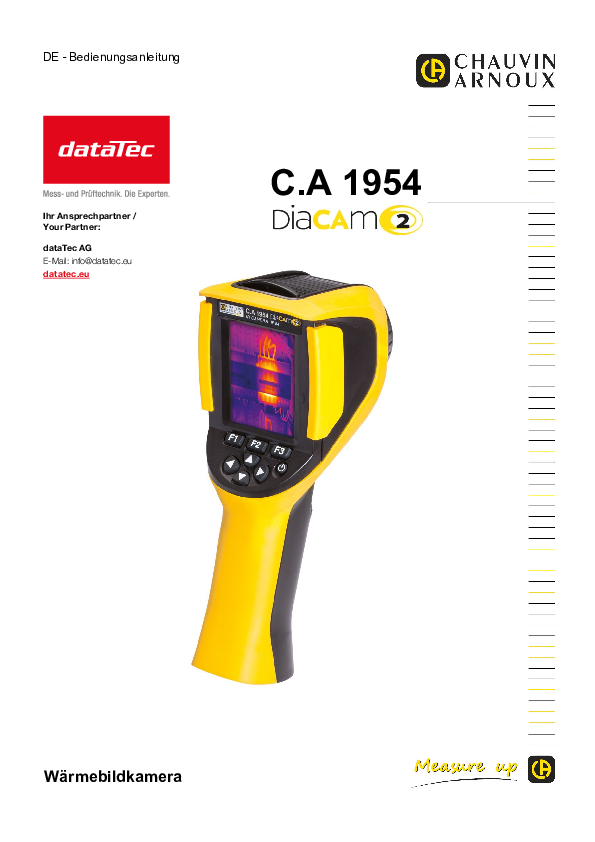

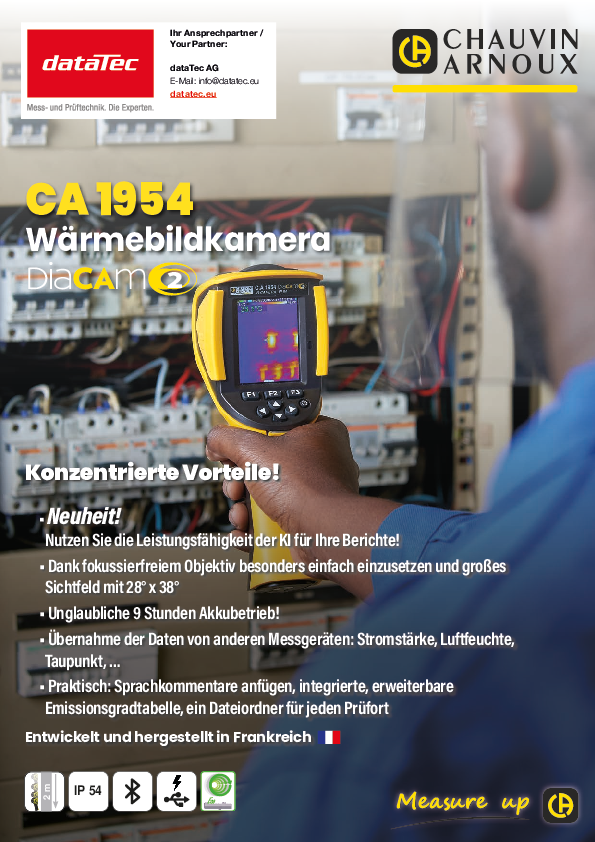

Documents & Downloads
