Chauvin Arnoux P01174830 | CA1727 industrial tachometer in a case with software

Manufacturer number: P01174830

Chauvin Arnoux P01174830 | Industrial tachometer and speedometer CA1727.

  • Function (min-1), RPM (number of revolutions): Range: 6 to 100,000 min-1; with mechanical transducer from 60 min-1
  • Resolution: 0.0006 to 6 depending on the measuring range
  • Accuracy: 1.10-4 of the display ± 6 digits
  • Function m / min, ft / min (linear speed): Range: 0.1 to 10,000 m / min
  • Resolution: 0.0006 to 6 depending on the measuring range
  • Accuracy: 1.10-4 of the display ± 1 step
  • Range: 0.1 to 10,000 Hz
  • Function Hz (frequency) resolution: 0.0004 to 0.4 depending on the measuring range
  • Accuracy: 4.10-5 of the display ± 4 digits
  • Range: 0.1 to 10,000 ms
  • Function ms (signal duration) Resolution: 0.0003 to 0.3 depending on the measuring range
  • Accuracy: 1.10-4 of the display ± 5 digits
  • Duty% function Range: 10 to 10,000%
  • Resolution: 0.1 to 1% depending on the measuring range
  • Accuracy: 0.1% of the range between 0.2 Hz and 50 Hz - 0.2% of the range between 50 Hz and 125 Hz - 1% of the range above 125 Hz
  • Event count range: 0 to 99,999 events
  • Accuracy: ± 1 event
  • Power supply 9 V battery
  • Battery life 250 measurements, each 5 min with infrared sensor
  • 600 measurements of 5 minutes each with an external signal generator
  • Measured value memory (CA 1727) 4000 points
  • Degree of protection IP 51
  • Weight 0.25 kg
  • Dimensions: W 216 mm x H 72 mm x D 47 mm

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Description

P01174830 | CA1727 industrial tachometer in a case with software

One switch position = one unit! You can choose between 7 units of measurement using the rotary switch:
min-1 (tr / min) - m / min - Hz - ms - Duty% - RPM - ft / min.

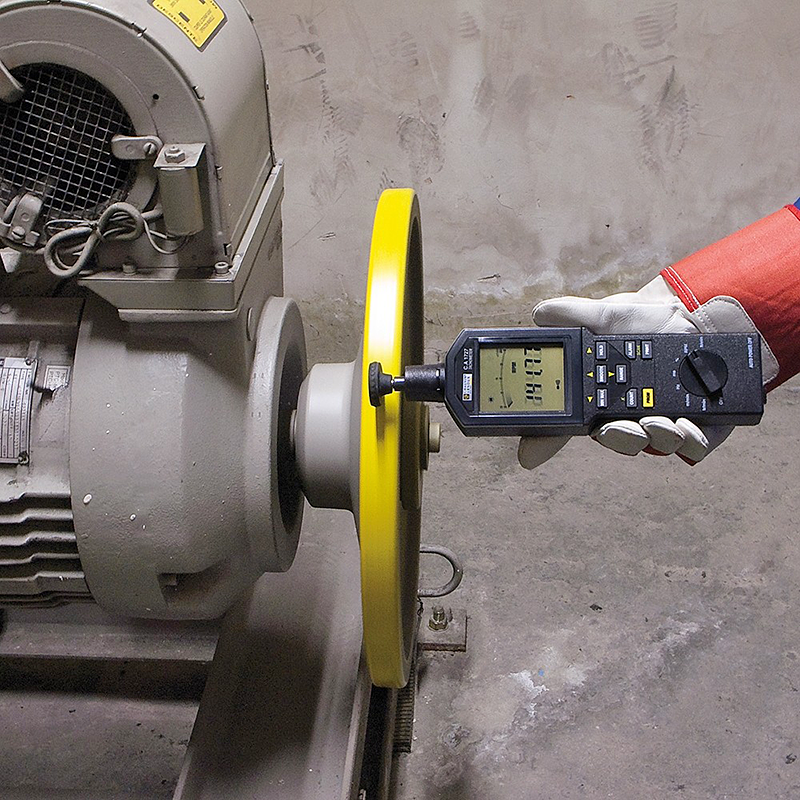

In the counting function you can measure directly in meters, feet or number of pulses. With the same device, you can measure the number of revolutions as well as speeds and pulse frequencies or the opening time of relay contacts. With the tachometer and speedometer, 3 types of measurements can be carried out: contactless, with contact or via an external measurement input.

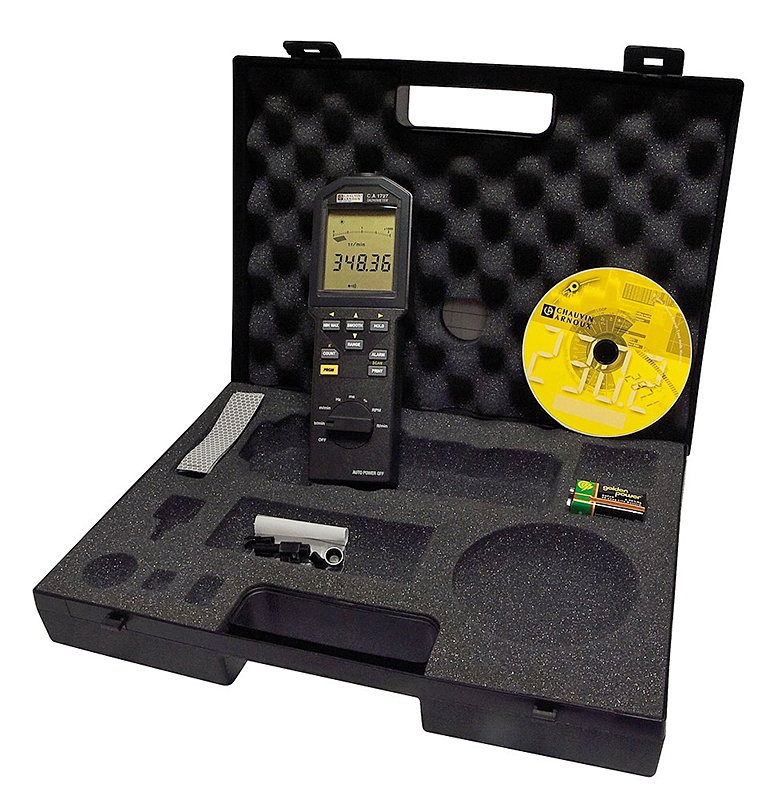

Lieferumfang

  • Transport case
  • FRB F connector
  • 1 x 9 V battery
  • 1 set of 15 reflective tapes (0.1 m long)
  • 1 instruction manual
  • 1 tachograph software on CD-Rom (CA 1727)
  • 1 quick start guide

Please note: special items may show signs of wear. Special items have a 1 year guarantee. The intermediate sale is reserved. The configuration of a special item cannot be changed.
