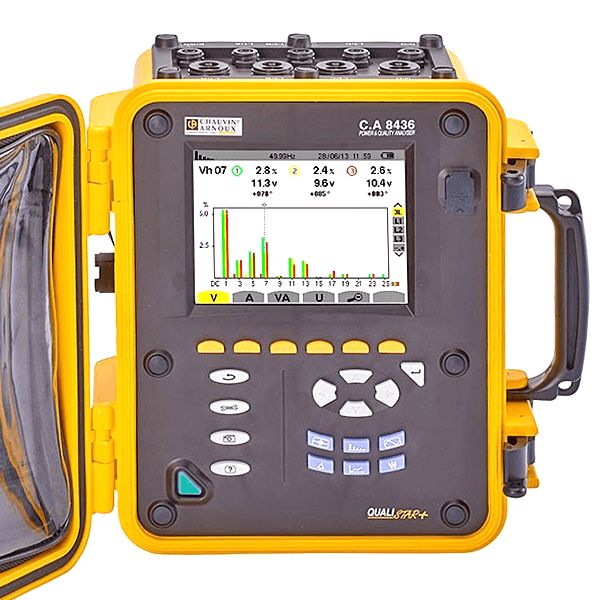

Chauvin Arnoux P01160595 | CA8436 network analyzer 5x V and 4x I inputs without current clamps

Manufacturer number: P01160595

Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Chauvin Arnoux P01160595
Delivery time upon request

€5,330.00

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Chauvin Arnoux P01160595 | CA8436 network analyzer 5x V and 4x I inputs without current clamps.

  • Robust and tight
  • Use indoors and outdoors, even when it is raining
  • 5 voltage inputs, 4 current inputs
  • Continuous and simultaneous recording of all parameters
  • Monitoring with alarms
  • For all types of systems
  • Inrush: with 10 minutes
  • Consideration of all DC components
  • Calculation of distorting voltages and currents
  • Measurement of the performances P, Q, S and D, in total and per phase
  • Calculation of the flicker Pst and Plt
  • Large selection of units: kW, Joule, Tep Atom, Tep without atom, BTU, toe, TEP etc.
  • Up to 40 alarms can be set at the same time.
  • Storage mode: Storage begins immediately

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 2.17 MB
Userguide
pdf | 1.73 MB

Description

P01160595 | CA8436 network analyzer 5x V and 4x I inputs without current clamps

The Chauvin Arnoux CA8436 Qualistar + power analyzer can be used to determine the voltage quality, quickly check a power grid, and efficiently analyze the measurements. A sophisticated design for more efficient work. The Qualistar devices were designed especially for maintenance and testing services and enable quick testing of the voltage quality and easy evaluation of the measured values. The keypad is divided into easily assignable zones (direct access to functions, pop-up menus, cursors, etc.). The button symbols are repeated on the large color screen (diagonal of 148 mm). The display modes are structured. Direct access enables more efficient work.
Specially developed rubber plugs guarantee an optimal housing seal for the CA 8436 analyzer.
