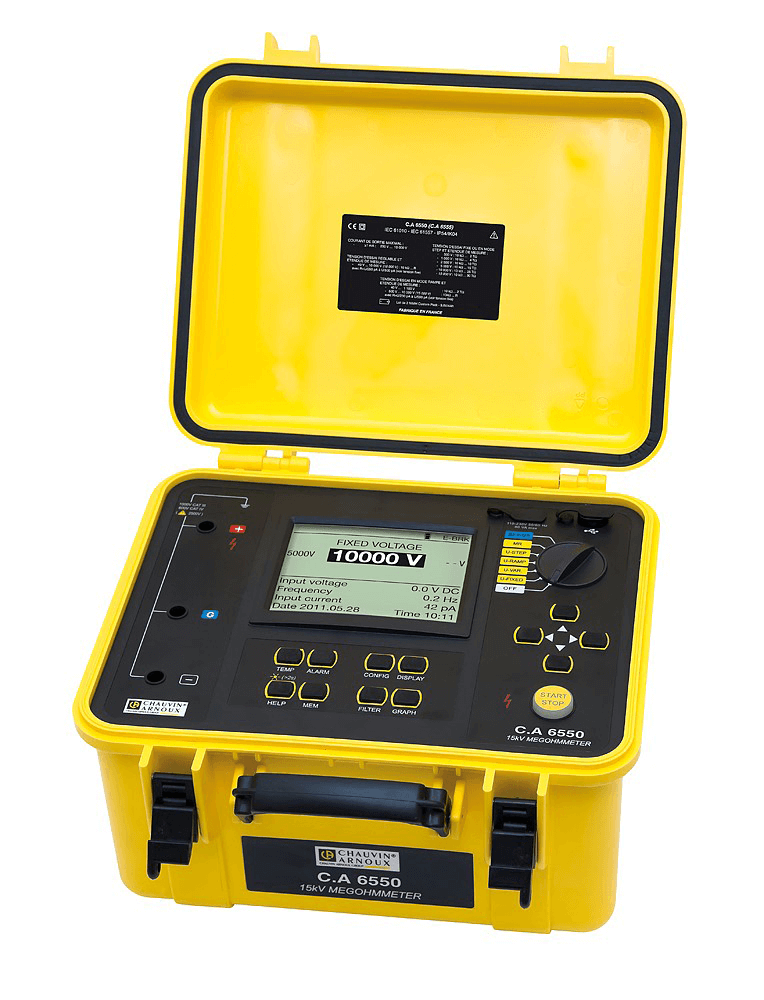

Chauvin Arnoux P01139715 | CA 6550 insulation meter 10kV.

  • Measuring range: 10 kΩ to 25 TΩ
  • Test voltage: Specified and adjustable from 40 V to 10 kV
  • Maximum charging current: 5mA
  • Display: Large, illuminated LCD display with digital display, bar graph and curve graphic R (t) + u (t), i (t), i (u)
  • Test method: step-shaped, ramp-shaped test voltage, “burning” test, “early break” test or test with “I-limit”
  • Memory: 80,000 readings
  • Connection: Optically isolated USB port
  • Power supply: NiMH battery and external charger
  • Standards: Meets IEC 61557 -1 -2 standards and has installation category IEC 61010 1000 V CAT IV
  • Dimensions: 406 x 330 x 174 mm
  • Weight: 6kg

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.66 MB

Description

P01139715 | CA 6550 insulation meter 10kV

The Chauvin Arnoux CA 6550 insulation meter is a high-quality measuring device that was specially developed for the insulation testing of devices in production, during regular tests or when recommissioning systems. With its robust, construction site-compatible housing, it is ideal for use in various environments.

This device is particularly intended for electricity suppliers, system manufacturers, installers, maintenance companies, research centers and infrastructure companies. It complies with the IEEE 43 standard, which requires that insulation tests on rotating machines powered at 12 kV and above must be carried out with test voltages between 5 and 10 kV.

The CA 6550 offers a comprehensive measuring range from 10 kΩ to 25 TΩ and a predefined and adjustable test voltage from 40 V to 10 kV. The maximum charging current is 5 mA. The device has a large, illuminated LCD display with digital display, bar graph and curve graphic R (t) + u (t), i (t), i (u).

It automatically calculates DAR / PI / DD / DR (ppm/V) and offers several test methods: step-type, ramp-type test voltage, “burning” test, “early break” test or “I-limit” test. A filter to stabilize the measurement results and the conversion of R to a reference temperature are also integrated.

The CA 6550 has a memory for 80,000 measured values and a real-time clock. An optically isolated USB port allows data transfer to a computer and the use of DataView ® logging software. The device is powered by a NiMH battery and an external charger.

It complies with IEC 61557 -1 -2 standards and has the IEC 61010 1000 V CAT IV installation category.

Lieferumfang

  • Transport bag
  • 3m safety measuring cable with high-voltage plugs
  • 3m Guard safety test lead with high voltage
    plug
  • 3 alligator clips
  • 2 test probes
  • 2m measuring line
  • 2m power connection cable
  • MEG software
  • USB cable
