Chauvin Arnoux P01139712 | CA 6547 Insulation meter 5kV

Name: P01139712 | CA 6547 Insulation meter 5kV
Brand: Chauvin Arnoux
SKU: P01139712
Price: 3874.0 EUR
Availability: OutOfStock

Manufacturer number: P01139712

Delivery time upon request

€3,874.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

Chauvin Arnoux P01139712 | CA 6547 Insulation meter 5kV.

Test voltage: Up to 5000V
Measuring range: 10 kΩ to 10 TΩ
Display: Large format, illuminated LCD display
Test voltages: 500, 1000, 2500 and 5000 V
Programmable test voltage: 40 V to 5100 V in 10 V or 100 V steps
Power supply: NiMH batteries
Operating time: Approximately one month with 10 DAR and 5 PI measurements per day
Complies with installation categories: IEC 61010-1 CAT III 1000 V or CAT I 2500 V and IEC 61557
Dimensions: 270 x 250 x 180 mm
Weight: 4.3kg

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet

pdf | 0.60 MB

Description

P01139712 | CA 6547 Insulation meter 5kV

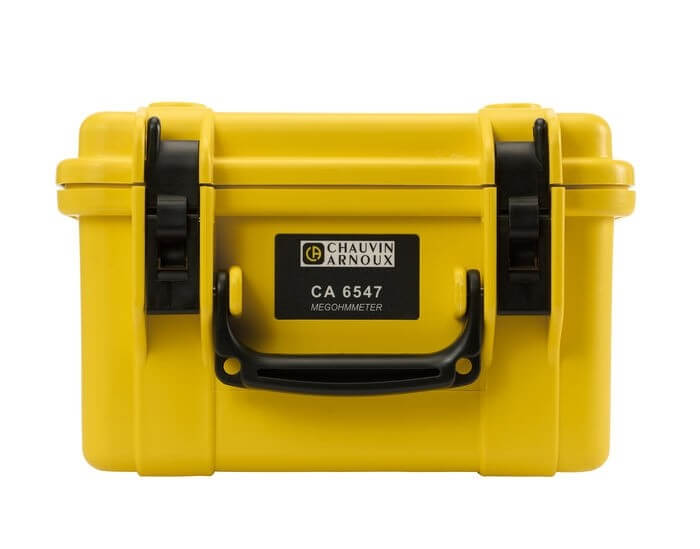

The Chauvin Arnoux CA 6547 insulation meter is a robust, construction site-friendly instrument that is optimized for the quantitative and qualitative testing of insulation. With a test voltage of up to 5000 V, the CA 6547 offers a comprehensive measuring range.

In addition to the insulation resistance, the tester also displays voltages, capacities and residual currents. It has four predefined test voltages: 500, 1000, 2500 and 5000 V. In addition, the test voltage can be programmed from 40 V to 5100 V in 10 V or 100 V steps.

The CA 6547 has a large-format, illuminated LCD display. It carries out a qualitative insulation test and automatically calculates the parameters DAR, PI, DD and plots the R (t) curve.

Other functions include a programmable test duration, limiting the test voltage to safe values, smooth, programmable alarms and much more. The CA 6547 is powered by NiMH batteries, which provide approximately one month of operation with 10 DAR and 5 PI measurements per day.

The device complies with the installation categories IEC 61010-1 CAT III 1000 V or CAT I 2500 V and IEC 61557.

Lieferumfang

carry bag
2 safety high voltage cables, red or blue, 3 m long, with HS plug on one side and HS crocodile clip on the other.
1 protected safety high voltage cable, black, 3 m long, with HS plug with back contact on one side and HS crocodile clip on the other.
1 protected safety high-voltage cable, blue, 35 cm long, with HS plug on one side and HS plug with back contact on the other.
1 power connection cable, 1.8 m long
8 simplified operating instructions
1 USB stick with the operating instructions and the MEG user software
1 connection cable USB-A / USB-B.
