Chauvin Arnoux P01139711 | CA 6545 insulation meter 5kV

Manufacturer number: P01139711

Chauvin Arnoux P01139711
Chauvin Arnoux P01139711
Chauvin Arnoux P01139711
Chauvin Arnoux P01139711
Ready to ship in 5 to 10 business days

€3,124.00

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

Chauvin Arnoux P01139711 | CA 6545 insulation meter 5kV.

  • Test voltage: Up to 5000V
  • Measuring range: 10 kΩ to 10 TΩ
  • Display: Large format, illuminated LCD display
  • Test voltages: 500, 1000, 2500 and 5000 V
  • Programmable test voltage: 40 V to 5100 V in 10 V or 100 V steps
  • Power supply: NiMH batteries
  • Operating time: Approximately one month with 10 DAR and 5 PI measurements per day
  • Complies with installation categories: IEC 61010-1 CAT III 1000 V or CAT I 2500 V and IEC 61557
  • Dimensions: 270 x 250 x 180 mm
  • Weight: 4.3kg

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.60 MB

Description

P01139711 | CA 6545 insulation meter 5kV

The Chauvin Arnoux CA 6545 insulation meter is a robust, construction site-friendly instrument that is optimized for the quantitative and qualitative testing of insulation. With a test voltage of up to 5000 V, the CA 6545 offers a comprehensive measuring range from 10 kΩ to 10 TΩ.

In addition to the insulation resistance, the tester also displays voltages, capacities and residual currents. It has four predefined test voltages: 500, 1000, 2500 and 5000 V. In addition, the test voltage can be programmed from 40 V to 5100 V in 10 V or 100 V steps.

The CA 6545 has a large-format, illuminated LCD display that shows both numerical values and a bar graph. It carries out a qualitative insulation test and automatically calculates the parameters DAR, PI, DD and plots the R (t) curve.

Other functions include a programmable test duration, limiting the test voltage to safe values, smooth, programmable alarms and much more. The CA 6545 is powered by NiMH batteries, which provide approximately one month of operation with 10 DAR and 5 PI measurements per day.

The device complies with the installation categories IEC 61010-1 CAT III 1000 V or CAT I 2500 V and IEC 61557.

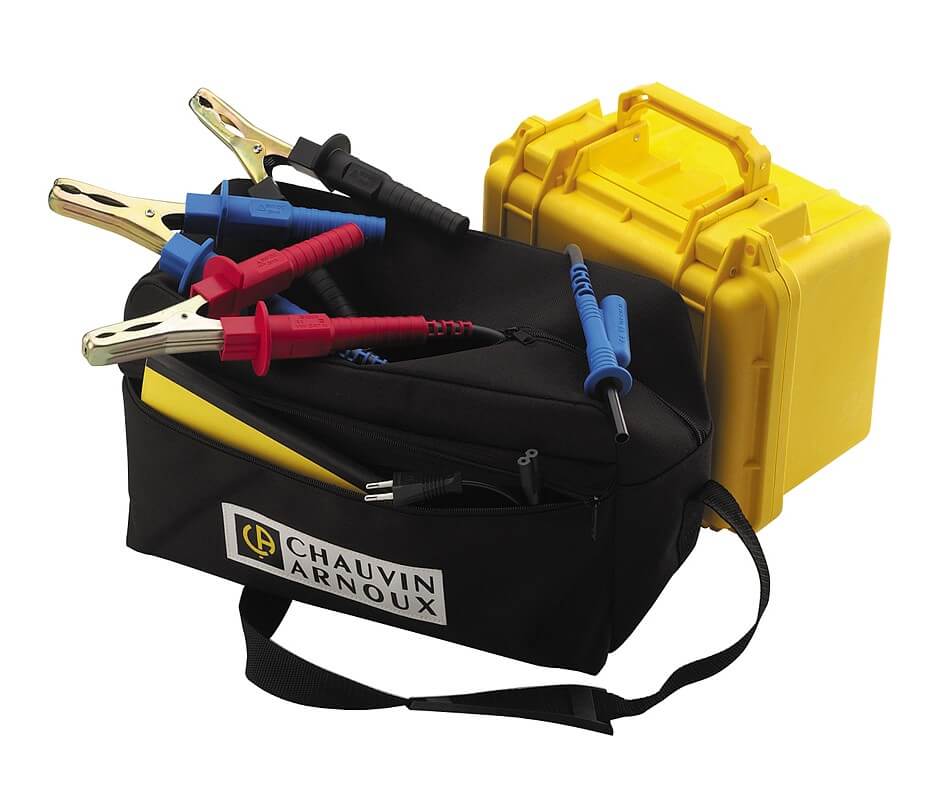

Lieferumfang

  • carry bag
  • 2 safety high voltage cables, red or blue, 3 m long, with HS plug on one side and HS crocodile clip on the other.
  • 1 protected safety high voltage cable, black, 3 m long, with HS plug with back contact on one side and HS crocodile clip on the other.
  • Protected safety high-voltage cable, blue, 35 cm long, with HS plug on one side and HS plug with back contact on the other.
  • 1 power connection cable, 1.8 m long
  • 8 simplified operating instructions
  • 1 USB stick with the operating instructions
