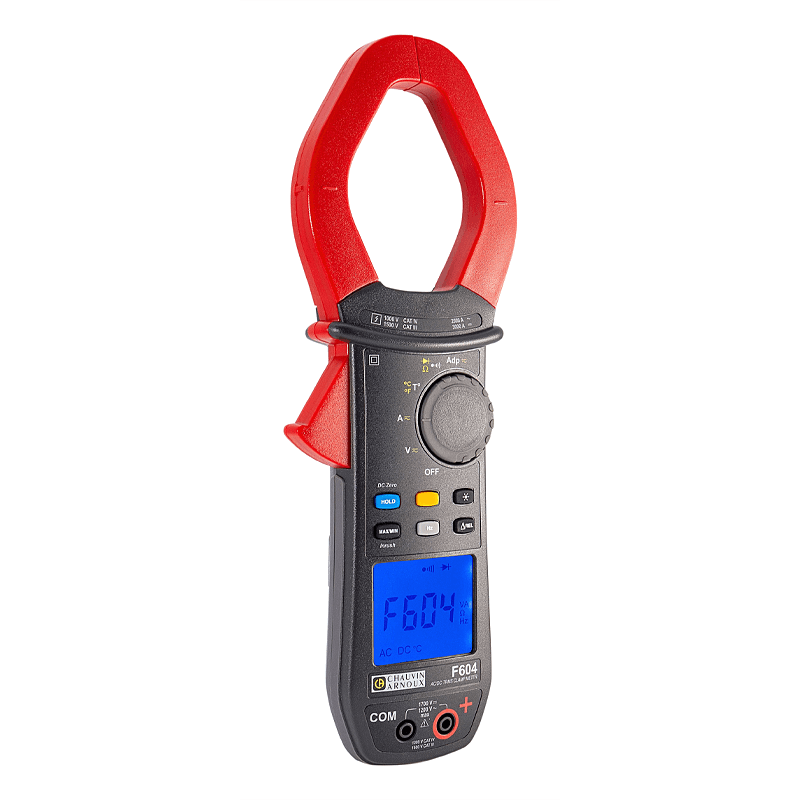

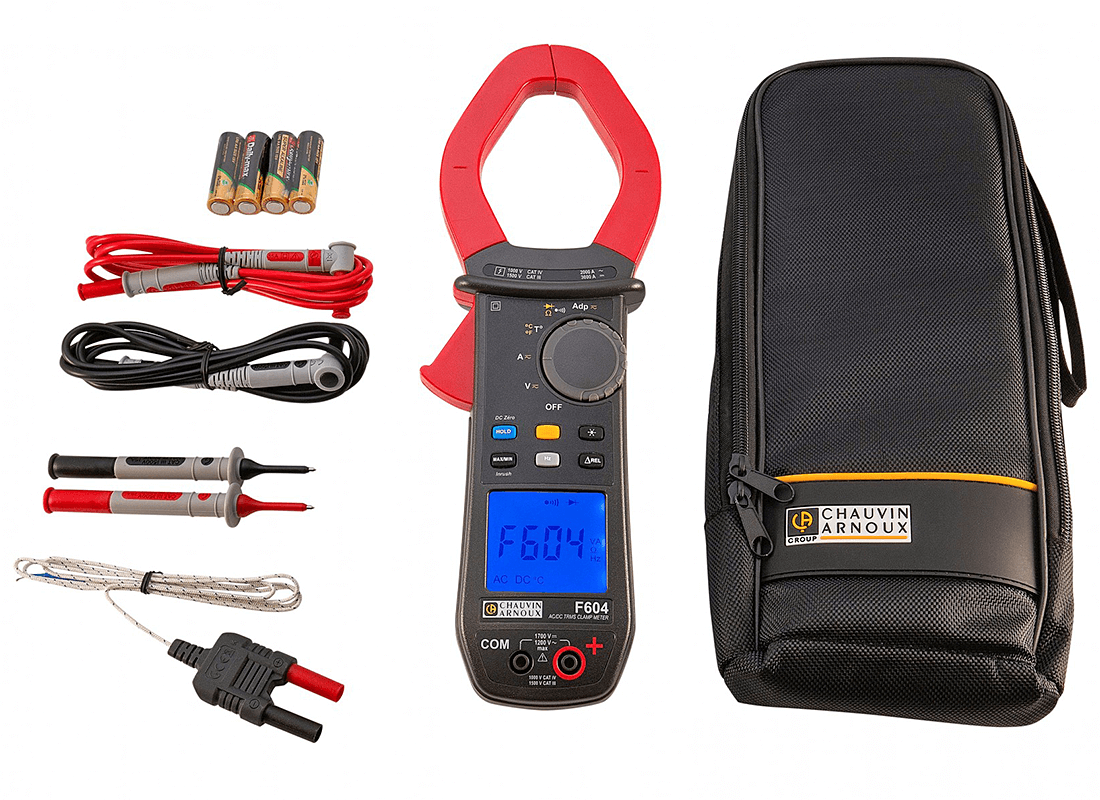

Chauvin Arnoux P01120964 | F604 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC/DC, 2000/3000A, 1200/1700V, 60mm

Manufacturer number: P01120964

P01120964
P01120964
P01120964
P01120964
P01120964
P01120964
Ready to ship in 5 to 10 business days

€618.00

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Chauvin Arnoux P01120964 | F604 current clamp multimeter, 4 digit, TRMS, LCD, AC/DC, 2000/3000 A (peak), 1200/1700 V (peak), 60 mm aperture, F600 series.

  • Enclosure diameter: 60 mm
  • Display: LCD backlit
  • Measurement type: TRMS AC/DC
  • Resolution: 10000 digits
  • Autoranging (Autorange): Yes
  • A AC: 0.25A to 2000A (3000A peak)
  • ADC: 0.25A to 3000A
  • VAC: 0.15V to 1200V (1700V peak)
  • VDC: 0.15V to 1700V
  • Accuracy: 1% R/S + 3 digits
  • Safety: 1000V CAT IV / 1500V CAT III
  • Dimensions: 111mm x 296mm x 41mm
  • Weight: 640g

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 4.05 MB

Description

P01120964 | F604 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC/DC, 2000/3000A, 1200/1700V, 60mm

The F604 clamp meter from the Chauvin Arnoux F600 series is specially designed for high-power, low-voltage applications, making it ideal for the distribution of electrical energy, the chemical and petrochemical industries, metalworking and metallurgy, means of transport, etc. The main areas of application are maintenance, control, monitoring, troubleshooting, dimensioning and the connection of new systems. The current clamp has a significantly increased peak value (3,000 A / 1,700 V peak).

The current clamps of the F600 series are characterized by their safety and robust design. The F604 conforms to 1000 V CAT IV / 1500 V CAT III ensuring an unprecedented level of safety.

All multi-meter clamps in the F600 series work with 12-bit digital data acquisition using the TRMS method. This guarantees exact measurement results.

The devices were specially designed for operation with one hand, even when wearing gloves.
