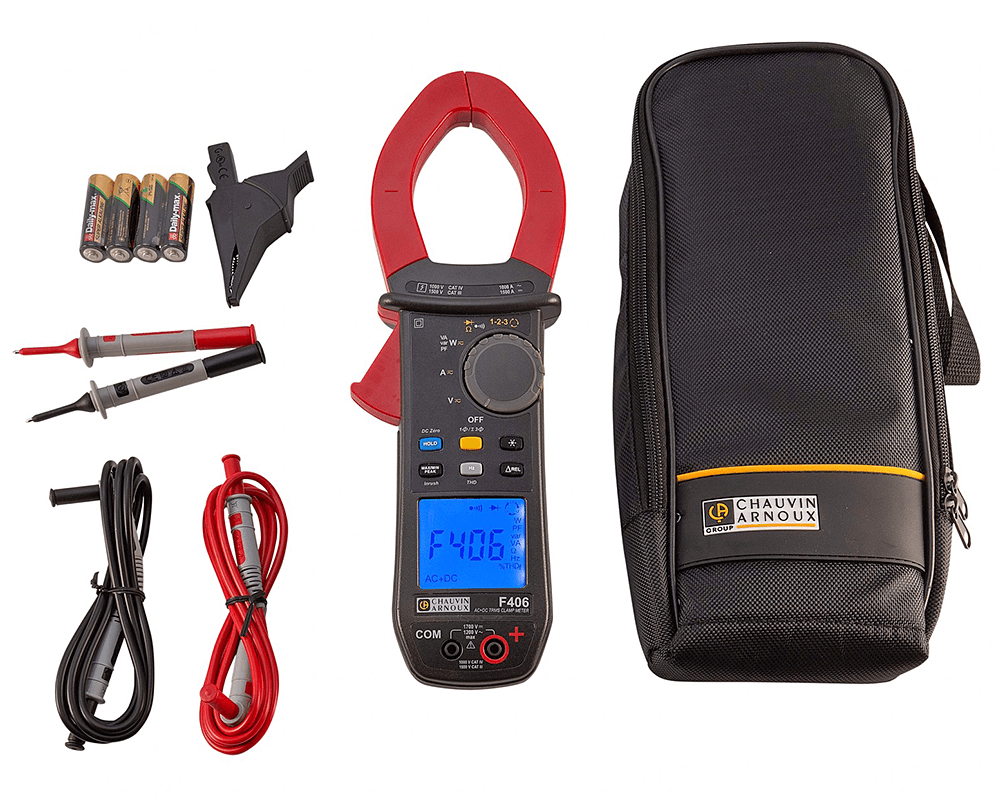

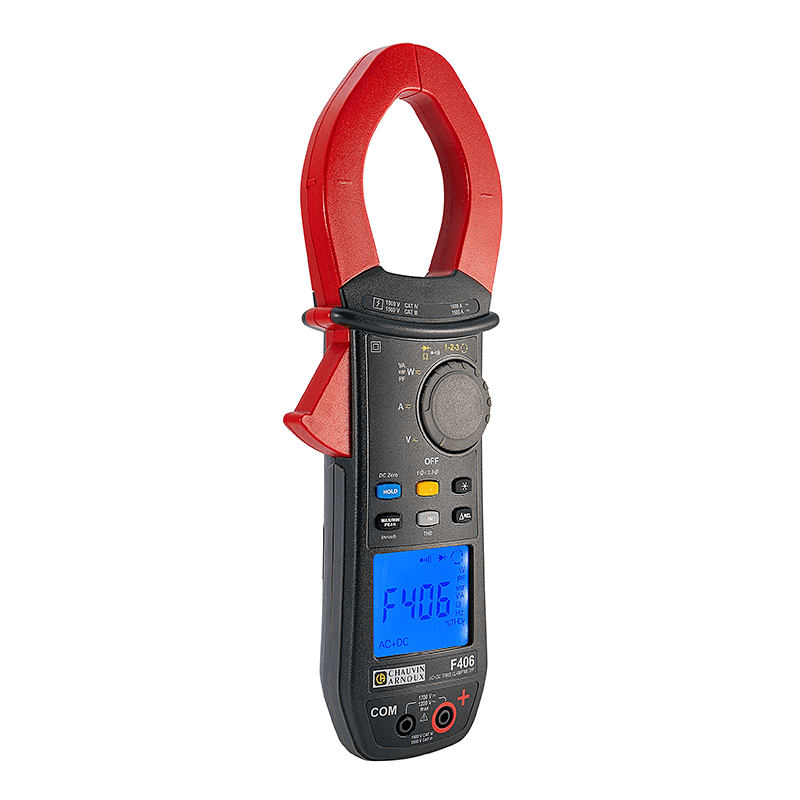

Chauvin Arnoux P01120946 | F406 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC/DC, 1000/1500A, 1200/1700V, 48mm

Manufacturer number: P01120946

P01120946
P01120946
P01120946
P01120946
P01120946
P01120946
3 in stock. Ready to ship in 1 business day

€495.00

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Chauvin Arnoux P01120946 | F406 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC/DC, 1000/1500A(peak), 1200/1700V(peak), 48mm aperture, F400 Series.

  • Enclosure diameter: 48 mm
  • Display: LCD backlit
  • Measurement type: TRMS [AC, AC+DC]/DC
  • Resolution: 10000 digits
  • Autoranging (Autorange): Yes
  • A AC: 0.25A to 1000A (1500A peak)
  • ADC: 0.25A to 1500A
  • VAC: 0.15V to 1200V (1700V peak)
  • VDC: 0.15V to 1700V
  • A AC+DC: 0.15V to 1200V (1700V peak)
  • Accuracy: 1% R/S + 3 digits
  • Safety: 1000V CAT IV / 1500V CAT III
  • Dimensions: 92mm x 272mm x 41mm
  • Weight: 600g

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 4.05 MB

Description

P01120946 | F406 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC/DC, 1000/1500A, 1200/1700V, 48mm

The F406 current clamp from the Chauvin Arnoux F400 series is designed for medium power in the low-voltage range and is therefore ideally suited for low-voltage distribution networks, for railway traffic or industrial applications. Thanks to the significantly increased peak value (1,500 A / 1,700 V peak), the current clamp multimeter is ideal for measurements on photovoltaic strings.

The current clamps of the F400 series are characterized by their safety and robust design. Thus, the F406 1000 V CAT IV / 1500 V CAT III conforms to ensure an unprecedented level of safety.

All current clamps of the F400 series work with a 12-bit digital data acquisition according to the TRMS method. This guarantees exact measurement results.

The devices were specially designed for operation with one hand, even when wearing gloves.
