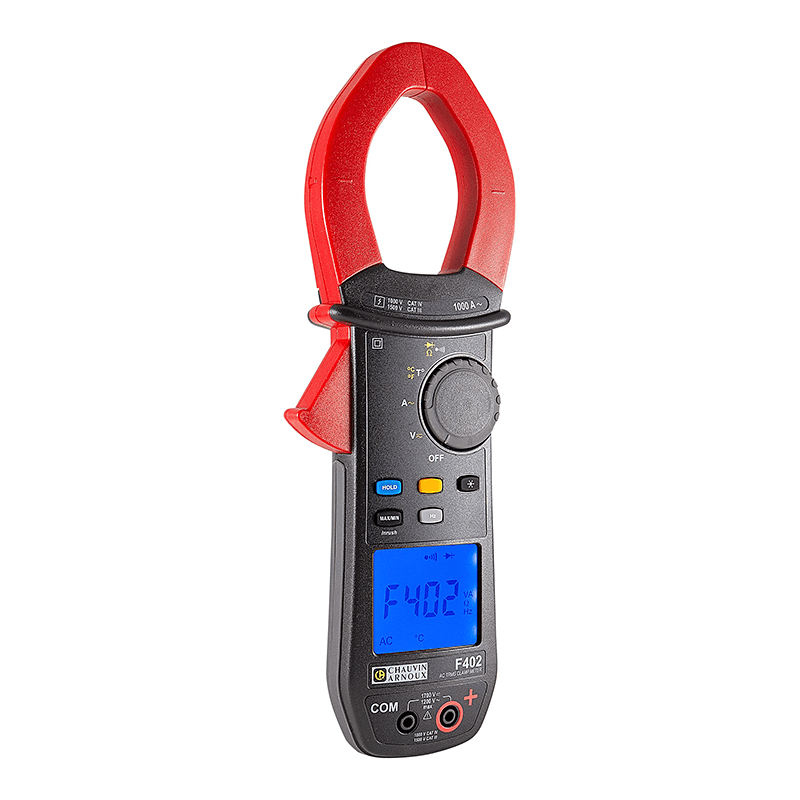

Chauvin Arnoux P01120942 | F402 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC, 1000/1500A, 1200/1700V, 48mm

Manufacturer number: P01120942

P01120942
P01120942
P01120942
P01120942
P01120942
P01120942
Ready to ship in 5 to 10 business days

€344.00

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Chauvin Arnoux P01120942 | F402 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC, 1000/1500A(peak), 1200/1700V(peak), 48mm aperture, F400 Series.

  • Enclosure diameter: 48 mm
  • Display: LCD backlit
  • Measurement type: TRMS AC
  • Resolution: 10000 digits
  • Autoranging (Autorange): Yes
  • A AC: 0.25A to 1000A (1500A peak)
  • VAC: 0.15V to 1200V (1700V peak)
  • VDC: 0.15V to 1700V
  • Accuracy: 1% R/S + 3 digits
  • Safety: 1000V CAT IV / 1500V CAT III
  • Dimensions: 92mm x 272mm x 41mm
  • Weight: 600g

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 4.05 MB

Description

P01120942 | F402 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC, 1000/1500A, 1200/1700V, 48mm

The F402 current clamp from the Chauvin Arnoux F400 series is designed for medium power in the low-voltage range and is therefore ideally suited for low-voltage distribution networks, for railway traffic or industrial applications. Thanks to the significantly increased peak value (1,500 A / 1,700 V peak), the current clamp multimeter is ideal for measurements on photovoltaic strings.

The current clamps of the F400 series are characterized by their safety and robust design. Thus, the F402 1000 V CAT IV / 1500 V CAT III conforms to ensure an unprecedented level of safety.

All current clamps of the F400 series work with a 12-bit digital data acquisition according to the TRMS method. This guarantees exact measurement results.

The devices were specially designed for operation with one hand, even when wearing gloves.

Alternate products (8 products)

Alternate products (8 products)

P01120921
Chauvin Arnoux
P01120921
F201 clamp meter, handheld 4 digits, AC, 600A
Ready to ship in 5 to 10 business days
€253.00
P01120923
Chauvin Arnoux
P01120923
F203 Clamp Multimeter, Hand 4 Digits, AC / DC, 600A / 900A
Ready to ship in 5 to 10 business days
€307.00
P01120925
Chauvin Arnoux
P01120925
F205 clamp meter, handheld 4 digits, AC / DC, 600A / 900A
5 in stock. Ready to ship in 1 business day
€391.00
P01120946
Chauvin Arnoux
P01120946
F406 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC/DC, 1000/1500A, 1200/1700V, 48mm
3 in stock. Ready to ship in 1 business day
€495.00
P01120947
Chauvin Arnoux
P01120947
F407 clamp meter, handheld LCD, AC / DC, 1000A / 1500A
Ready to ship in 5 to 10 business days
€601.00
P01120964
Chauvin Arnoux
P01120964

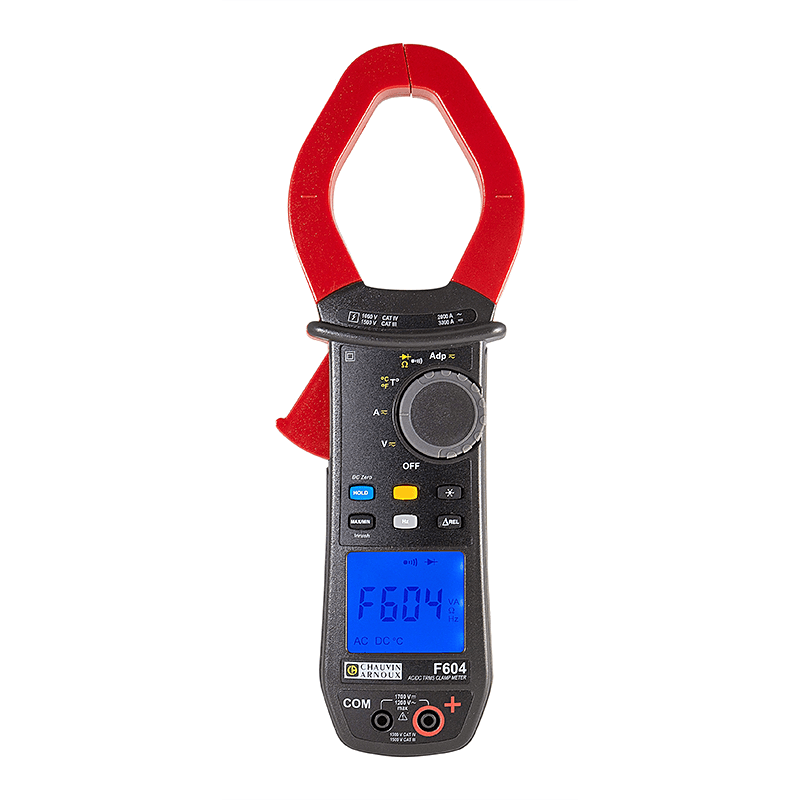

F604 Current Clamp Multimeter, 4 Digit, TRMS, LCD, AC/DC, 2000/3000A, 1200/1700V, 60mm
