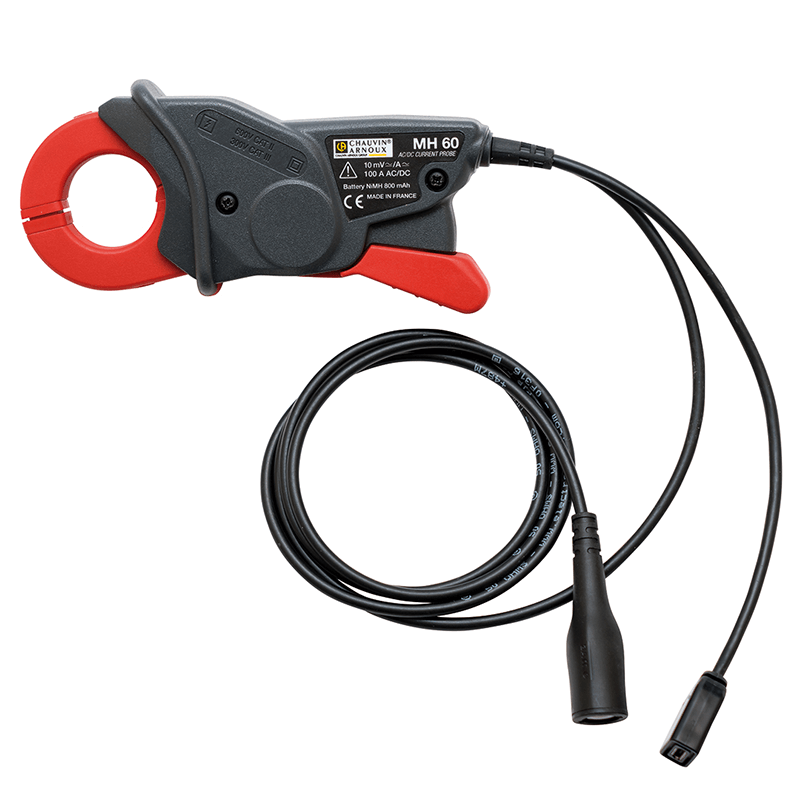

Chauvin Arnoux P01120612 | Current clamp MH60, BNC, 0.01 to 100A, DC - 1MHz, battery and USB operation

Manufacturer number: P01120612

P01120612
P01120612
P01120612
P01120612
Ready to ship in 5 to 10 business days

€595.00

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Chauvin Arnoux P01120612 | Isolated AC and DC clamp-on current transformer (current clamp) MH60 with BNC connection for oscilloscopes.

  • Current: from 10 mA to 100 A AC + DC (140 A peak)
  • Output signal: 10 mV / A
  • Bandwidth: 1 MHz
  • Switchable filters: 30 kHz, 3 kHz
  • Enclosure: 1 conductor with Ø 26 mm
  • 300 V CAT III / 600 V CAT II
  • Connection cable: 2 m long, permanently connected with insulated BNC connector
  • Isolated AC and DC current clamp (current clamp) for oscilloscopes, model MH60, delivery with 1 power supply 100 V-240 V 50/60 Hz, 1 USB connection cable / μUSB, 1 instruction manual in 5 languages.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.26 MB

Description

P01120612 | Current clamp MH60, BNC, 0.01 to 100A, DC - 1MHz, battery and USB operation

The MH60 current clamp was developed for simple and convenient use with oscilloscopes: Simply enclose the conductor and measure the current. Current measurements up to 100 A with high bandwidth are possible.

The MH60 is compact and its containment diameter is 26 mm. It is suitable for many areas of application: power electronics, automotive engineering, production of electrical items, etc.

The MH60 current probe can be supplied with power by the oscilloscope using a mains adapter or the permanently molded µUSB connection cable. The built-in NiMH accumulator (optional) enables mains-independent operation of approx. 8 hours.
