Chauvin Arnoux P01192200 | CA 922 Handscope, hand-held oscilloscope, 2 channels, 20 MHz

Manufacturer number: P01192200

P01192200
P01192200
P01192200
P01192200
P01192200
P01192200
P01192200
P01192200
P01192200
P01192200
Ready to ship in 5 to 10 business days

€1,473.00

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Chauvin Arnoux CA 922 | Portable oscilloscope hand scope, 20 MHz, 2 isolated channels, incl. multimeter & harmonics analyzer function (P01192200).

  • Display: 3.5-inch color TFT, 320x240 resolution, LED backlight
  • Display type: 2500 real detection points on the screen
  • Signals displayed on screen: 2 curves + 2 reference signals + saved curve or MATH-calculated curve
  • Controls: Front panel direct function keys & on screen menus with selection
  • Built-in interactive help function: 14 languages
  • Bandwidth: 20MHz
  • Bandwidth Limiter: 1.5MHz, 5kHz
  • Number of channels: 2 fully isolated channels
  • Input impedance: 1 MΩ ±0.5%, about 17 pF
  • Maximum input voltage: 600 V CAT III - Derating -20 dB per decade from 100 kHz
  • Vertical sensitivity: 5 mV/div to 200 V/div
  • Time base: 25 ns/div to 200 s/div - Roll mode from 100 ms/div to 200 s/div
  • Horizontal zoom: Zoom factors: x1, x2, x5
  • Maximum sampling rate: 2 GS/s in ETS - 50 MS/s in one-shot in each channel
  • Vertical resolution: 9 bits
  • Memory depth: 2500 points per channel
  • Interface: USB with optical isolation
  • User software for PC: »SX-Metro« as an option
  • Application software for multimeters: »SX-DMM« as an option
  • Power supply: 6 batteries type LR6 or 6 NiMH batteries type AA
  • Battery operation: Up to 8 hours 30 minutes
  • Safety / EMC Electrical safety: according to IEC 61010-1 Ed3 - 600 V CAT III - EMC according to EN 61000-3, 2001 & EN 61326-1, 2006
  • Dimensions: 214mm x 110mm x 57mm
  • Weight: 1.2 kg with batteries
  • Guarantee: 3 years

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.20 MB
Userguide
pdf | 32.71 MB

Description

P01192200 | CA 922 Handscope, hand-held oscilloscope, 2 channels, 20 MHz

The Chauvin Arnoux HANDSCOPE oscilloscopes were developed as instruments for use in the field and are characterized by their ease of use. Its shockproof body with an elastomer cover is protected and fits perfectly in the hand.

The control buttons on the front panel are easy to use, even when wearing gloves, and are clearly arranged in function groups. The multilingual interactive help function makes operation easier for you without having to consult the operating instructions.

The 3.5 inch TFT color screen is extremely easy to read and the LED backlight is very energy-efficient, so that measurements can also be taken while the device is charging.

Areas of application:

Compact and one-handed, the HANDSCOPES CA922 and CA924 are perfect for field work on electrical systems and general maintenance work. Thanks to the isolated channels, you can carry out your measurements in complete safety without any special precautions.

The Chauvin Arnoux HANDSCOPE oscilloscopes are multifunctional instruments with the operating modes as oscilloscope, multimeter and harmonics analyzer. Transfer your measurement data to a PC in order to record and analyze them there with the associated SX-METRO software.

  • Measurements on pulse width modulated controllers with waveform display in oscilloscope mode
  • Measurements of power in multimeter mode
  • Analysis of network disturbances in operation as a harmonics analyzer

Lieferumfang

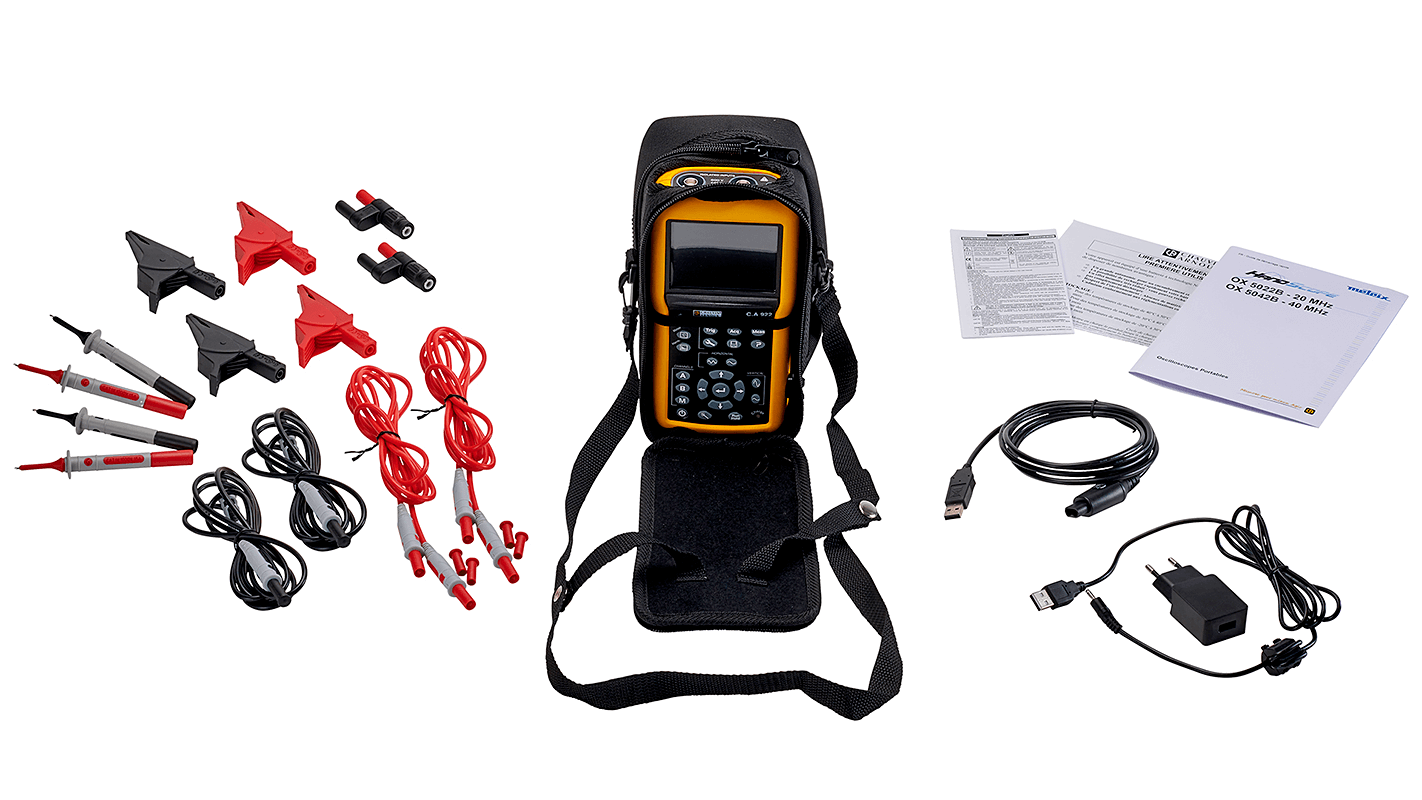

  • Handheld oscilloscope CA 922 (P01192200)
  • 2 adapters BNC banana
  • 2 sets of test leads 1.5 m long, banana straight-angled, PVC-coated, red/black
  • 2 sets of crocodile clips red/black
  • 2 sets of probes CAT IV 1000 V red/black
  • Jack-USB cable
  • WALL PLUG USB
  • Optical cable USB
  • carry bag
  • QSG paper
  • safety data sheet
  • Review
  • Note on NiMH rechargeable batteries

Accessoires (3 products)

Chauvin Arnoux
P01102188
PWM measurement set
Delivery time upon request
€449.00
Chauvin Arnoux
HX0099
Calibration software Handscope C.A 922 / C.A 942
Delivery time upon request
€732.00
Chauvin Arnoux
P01103080
Power supply/charger for handscope oscilloscopes C.A 922 / C.A 942
Delivery time upon request
€49.00

Alternate products (1 product)

P01194200
Chauvin Arnoux
P01194200
CA 942 Handscope, hand-held oscilloscope, 2 channels, 40 MHz
Ready to ship in 5 to 10 business days
€1,650.00

About the Manufacturer

Chauvin Arnoux
Chauvin Arnoux
Chauvin Arnoux stands for highest quality and innovative, highly reliable test equipment in the fields of electrical safety testing, measurement of electrical quantities, power measurement, energy and fault analysis.
