Benning 044169 | EV 3-2 measuring adapter for EVSE charging station wallboxes, charging mode 3 type 2, 3 phase PP CP

Manufacturer number: 044169

Benning 044169
Benning 044169
Benning 044169
Benning 044169
Benning 044169
Ready to ship in 5 to 10 business days

€580.90

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

Benning 044169 | EV 3-2 measuring adapter for e-charging stations of operating mode 3 with type 2 plug.

  • Input voltage: 1-phase: up to 250 V, 50 Hz - 60 Hz || 3-phase: up to 430 V, 50 Hz - 60 Hz
  • Maximum test current: 40 A (10 ms) periodic operation
  • Protection class: II (double insulation)
  • Degree of pollution: 2
  • Degree of protection: IP 40
  • Overvoltage category: CAT II 300 V to earth
  • BNC socket, resistor: BNC housing -> PE: 100 kΩ || BNC contact -> PE: 100 kΩ
  • BNC amplitude error: -2%
  • Operating temperature: 0… 40 ° C
  • Compliant with:
    IEC / DIN EN 61010-1 (VDE 0411-1)
    IEC / DIN EN 61010-2-030 (VDE 0411-2-030)
    IEC / DIN EN 61010-031 (VDE 0411-031)

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.02 MB

Description

044169 | EV 3-2 measuring adapter for EVSE charging station wallboxes, charging mode 3 type 2, 3 phase PP CP

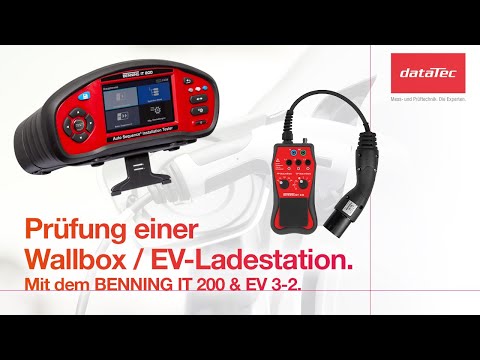

In combination with the IT 130 installation tester, the Benning EV 3-2 measuring adapter enables safety and functional tests on 1- and 3-phase charging stations for electric vehicles in accordance with DIN VDE 0100‑600 (IEC 60364‑6) and DIN VDE 0105‑100 (EN 50110 ).

The Benning EV 3-2 is intended for the testing of charging stations according to DIN EN / IEC 61851-1 (VDE 0122-1) of the charging mode "Mode 3" and has a type 2 connector according to IEC / EN 62196.

The Benning EV 3-2 establishes reliable contact with the installation tester and triggers the charging process of the charging station by simulating an electric vehicle.

Product features:

  • Testing of e-charging stations even with a permanently connected charging cable
  • Test socket and 4 mm sockets for easy connection to an installation tester
  • Separate phase display with three LEDs for easy voltage checking
  • Proximity Pilot (PP) checks the coding of the charging cables to limit the charging current
  • Control Pilot (CP) simulates the vehicle status A, B, C, D and E (short circuit between CP-PE)
  • BNC connection for the CP signal output for checking with an oscilloscope
  • Check of the EVSE locking system from status B (release of the charging cable is blocked)

Lieferumfang

  • Measuring adapter
  • Protective bag
  • operation manual
