Benning 044067 | CM11 clamp meter, digital, CAT IV 300V TRMS, AC / DC, 20A / 10A, 0.1 mA resolution

Name: 044067 | CM11 clamp meter, digital, CAT IV 300V TRMS, AC / DC, 20A / 10A, 0.1 mA resolution
Brand: Benning
SKU: 044067
Price: 388.8 EUR
Availability: InStock

Manufacturer number: 044067

Delivery time upon request

€388.80

or choose one of the following options:

Request a quote Product inquiries Request education-price

BENNING 044067 | CM 11 TRUE RMS Milliampere clamp meter multimeter for AC / DC current measurements with 0.1 mA resolution.

Ideal for troubleshooting in electrical systems, controls, devices and vehicle electrics
Precise measurement of small AC / DC currents with the highest resolution of 0.1 mA
Precise thanks to TRUE RMS true RMS measurement method
Compact dimensions with 23 mm pliers opening
Measurement of leakage, differential and leakage currents
Measurement of 4 mA - 20 mA process signals without interrupting the current loop
Quiescent current measurement on automotive batteries for checking creeping battery discharge
Precise measurement of load currents up to 20 A AC / 10 A DC
The highest measurement category CAT IV 30 V allows measurements directly at the source of the low-voltage installation
Backlit LC display
Display: 5,000 digits
Voltage AC: 0.01 V - 600 V
Voltage DC: 0.01 V - 600 V
Current DC: 0.1 mA - 10 A. Measuring ranges: 300.0 mA / 3,000 A / 10.00 A
Current AC: 0.1 mA - 20 A. Measuring ranges: 300.0 mA / 3,000 A / 20.00 A.
Resistance: 0.1 Ω - 600 kΩ
Passage: yes
Memory function: HOLD, MIN / MAX, ZERO
Measuring method: TRUE RMS
Pliers opening max .: 23 mm
Dimensions (L x W x H): 206 x 76 x 33 mm
Measurement category: CAT IV 300 V
Compact protective bag / batteries included

Technical Data

Accuracy current measurement AC/DC:	±1 % / ±1 %
Accuracy voltage measurement AC/DC:	±1 % / ±1 %
Article number:	044067
Current measuring range AC/DC:	0,1 mA - 20 A / 0,1 mA - 10 A
Dimensions (L x W x H) (mm):	206 x 76 x 33
Diode test / continuity test:	No / Yes
Direction of rotation:	No
Enclosure (mm):	23
Frequency measuring range:	No
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	Yes / Yes
Model:	Benning CM11
Number of positions:	4
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	0,1 Ω - 600 kΩ
Temperature measuring range:	No
Voltage measuring range AC/DC:	10 mV - 600 V / 10 mV - 600 V
Weight (kg):	0.262

Description

044067 | CM11 clamp meter, digital, CAT IV 300V TRMS, AC / DC, 20A / 10A, 0.1 mA resolution

The Benning CM11 current clamp multimeter is the ideal diagnostic device for all electricians, service technicians and maintenance staff in the electrical trade and industry.

Application: Due to the high accuracy in the direct and alternating current range, the Benning CM 11 is especially designed for troubleshooting in electrical systems, controls, devices and automotive electrics.

Accessoires (3 products)

Benning
010912

Ever-ready case size S Dimensions: 220 x 110 x 50 mm

Delivery time upon request

€17.40

Benning
020051

TRITEST easy, non-contact phase and rotating field tester

Delivery time upon request

€59.90

Benning
10198412

Hard case for BENNING accessories with foam insert, separate shelf

Delivery time upon request

€61.30

Alternate products (6 products)

Chauvin Arnoux
F65 digital current clamp (P01120761)

3 in stock. Ready to ship in 1 business day

€503.00

Gossen Metrawatt
M311H

Metraclip 64 current clamp AC / DC, 999mA, 4 digits

Ready to ship in 5 to 10 business days

€1,240.00

Gossen Metrawatt
M311G

Metraclip 63 current clamp AC / DC, 999mA, 4 digits

Ready to ship in 5 to 10 business days

€1,240.00

Benning
044678

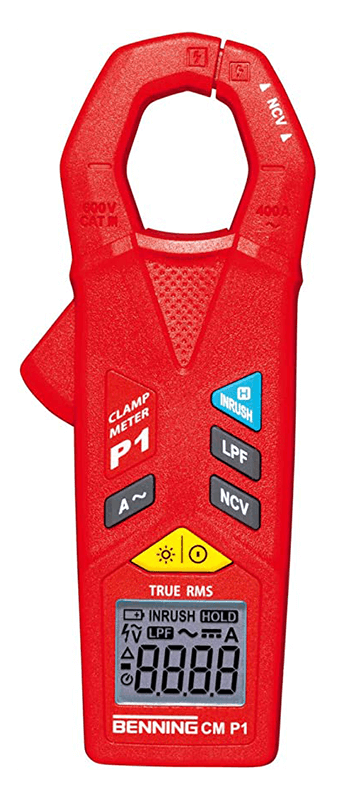

CM P1 clamp, digital, RMS AC 0.001 - 400A, 4 digits
