BEHA AMP-210-EUR | AC current clamp, TRMS, 600A, clamp opening 30 mm

Name: AMP-210-EUR | AC current clamp, TRMS, 600A, clamp opening 30 mm
Brand: BEHA
SKU: AMP-210-EUR
Price: 142.76 EUR
Availability: OutOfStock

Manufacturer number: AMP-210-EUR

Delivery time upon request

€142.76

% €172.00 (17% saved)

or choose one of the following options:

Request a quote Product inquiries

BEHA Amprobe AMP-210-EUR | AC current clamp, TRMS, 600A, clamp opening 30 mm, AMP-200-EUR series.

Independant Consulting

More than 25 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy current measurement AC/DC:	±1,8 %
Accuracy voltage measurement AC/DC:	±1 %
Article number:	4560581
Current measuring range AC/DC:	AC 0 A - 600 A
Dimensions (L x W x H) (mm):	219 x 77 x 37
Diode test / continuity test:	Yes / Yes
Direction of rotation:	No
Enclosure (mm):	30
Frequency measuring range:	5 Hz - 999,9 Hz
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	Yes / Yes
Model:	BEHA AMP-210-EUR
Number of positions:	3.75
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	0 Ω - 60 kΩ
Resolution current measurement AC/DC:	+5 Digits
Resolution voltage measurement AC/DC:	+5 Digits
Temperature measuring range:	No
Voltage measuring range AC/DC:	AC 0 V - 600
Weight (kg):	0.208

Documents & Downloads

Datasheet

pdf | 0.71 MB

Description

AMP-210-EUR | AC current clamp, TRMS, 600A, clamp opening 30 mm

The current measuring clamps AMP-210-EUR and AMP-220-EUR from Beha-Amprobe with true effective measurement up to 600 A offer a variety of measurement functions for modern electrical systems. Both models include true rms measurement, low-pass filters and processors with short response times to ensure fast, error-free measurements. The Amp-Tip function enables precise current measurement down to 0.1 A and thus accurate current measurement on both large and small wire diameters.

Measurement functions:

Current, voltage and resistance measurement
Capacity measurement and frequency measurement
Acoustic continuity test
Low pass filter
Measurement of the inrush current
Contactless voltage detection

Product features:

Automatic measuring range selection
Zero point adjustment, relative value measurement
Integrated measured value memory (data hold, MIN / MAX)
Pliers opening 30 mm (AMP-210-EUR), 35 mm (AMP-220-EUR)
Auto power off
Accurate measurement of small currents (amp tip)
Illuminated display

Alternate products (1 product)

BEHA
AMP-220-EUR

AC / DC current clamp, TMRS, 600A, clamp opening 35 mm

Delivery time upon request

€166.83 €201.00

Recommendations (1 product)

BEHA
FTF000370003

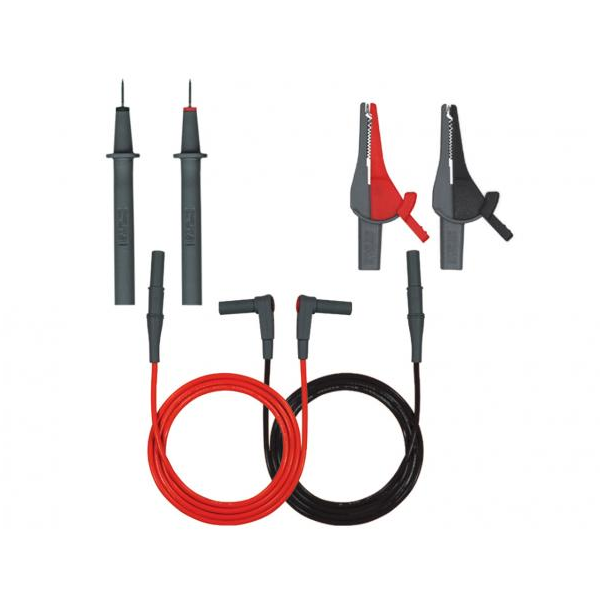

370003 Safety set, measuring leads red / black, 4 mm
