B&K Precision 9202B | Programmable DC Power Supply Unit, 1 Channel, Multi-Range, 60 V, 15 A, 360 W, USB, RS-232, GPIB, 9200B Series

Manufacturer number: BK9202B

9202B
9202B
9202B
9202B
9202B
9202B
Reordered - in stock. Delivery time on request

€1,120.00

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision 9202B | Programmable DC power supply, 1 channel, multi-range, 60 V, 15 A, 360 W, USB, RS-232, GPIB, 9200B series.

Produktmerkmale:

  • Maximale Ausgangsspannung: 60 V
  • Maximaler Ausgangsstrom: 15 A
  • Maximale Leistung: 360 W
  • Spannungsregelung (Leitungslast): ≤ 0.01% + 8 mV
  • Stromregelung (Leitungslast): ≤ 0.05% + 6 mA
  • Wellen und Rauschen: ≤ 15 mVpp (Spannung), ≤ 8 mArms (Strom)
  • Programmierauflösung: 1 mV / 0.1 mA
  • Rückleseauflösung: 1 mV / 0.1 mA
  • Programmiergenauigkeit: ≤ 0.03% + 5 mV (Spannung), ≤ 0.1% + 15 mA (Strom)
  • DVM-Messbereich: 0 bis 60 V
  • Schnittstellen: USB (USBTMC-konform), RS232
  • Betriebstemperatur: 0 °C bis 40 °C
  • Abmessungen (B × H × T): 214.5 × 88.2 × 354.6 mm
  • Garantie: 3 Jahre

Technical Data

Documents & Downloads

Datasheet
pdf | 1.97 MB

Description

9202B | Programmable DC Power Supply Unit, 1 Channel, Multi-Range, 60 V, 15 A, 360 W, USB, RS-232, GPIB, 9200B Series

The 9200B series from B&K Precision includes versatile, programmable DC power supplies with multi-range technology. Unlike conventional power supplies with fixed output ranges, these devices can automatically adjust the voltage and current limits to provide maximum power in any configuration. This makes them particularly suitable for use in research, development, production testing and training.

Features and benefits:

  • Multi-range function for maximum adaptability
  • High programming and read-back resolution (1 mV / 0.1 mA)
  • Storage and recall of up to 72 device settings
  • List mode programming to automate test sequences

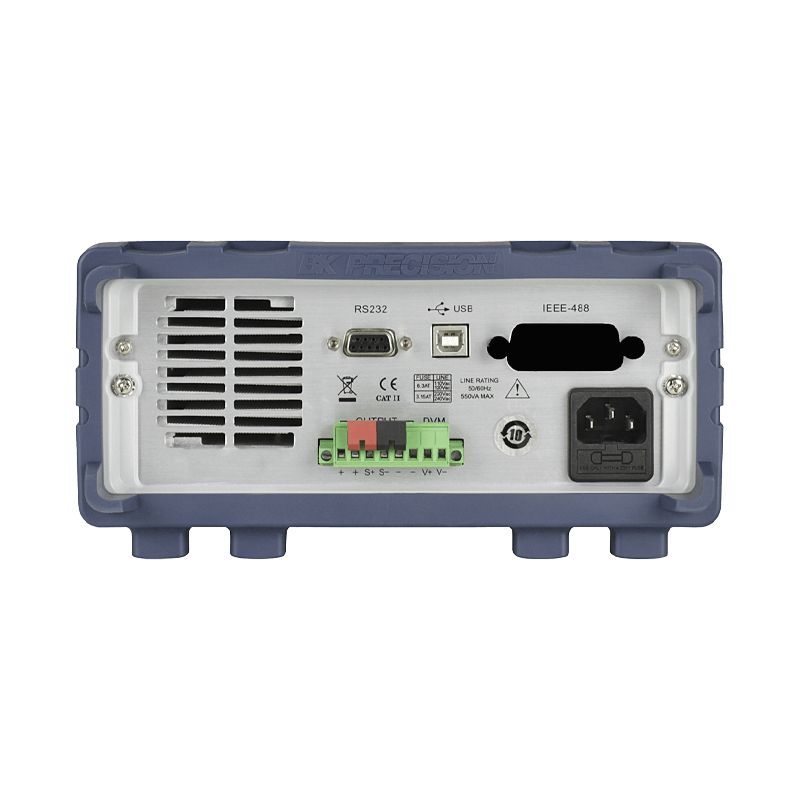

  • USB and RS232 interfaces for remote control (SCPI compatible)
  • Remote measurement to minimize voltage drops
  • Integrated digital voltmeter (DVM)
  • Protection mechanisms against overcurrent, overvoltage and overtemperature
  • Compact design in half 19" rack format for space-saving installation

The model 9202B is a powerful 360 W power supply unit with a maximum output voltage of 60 V and a maximum output current of 15 A. It is ideal for applications that require higher currents, for example in test benches, industrial tests or research and development.

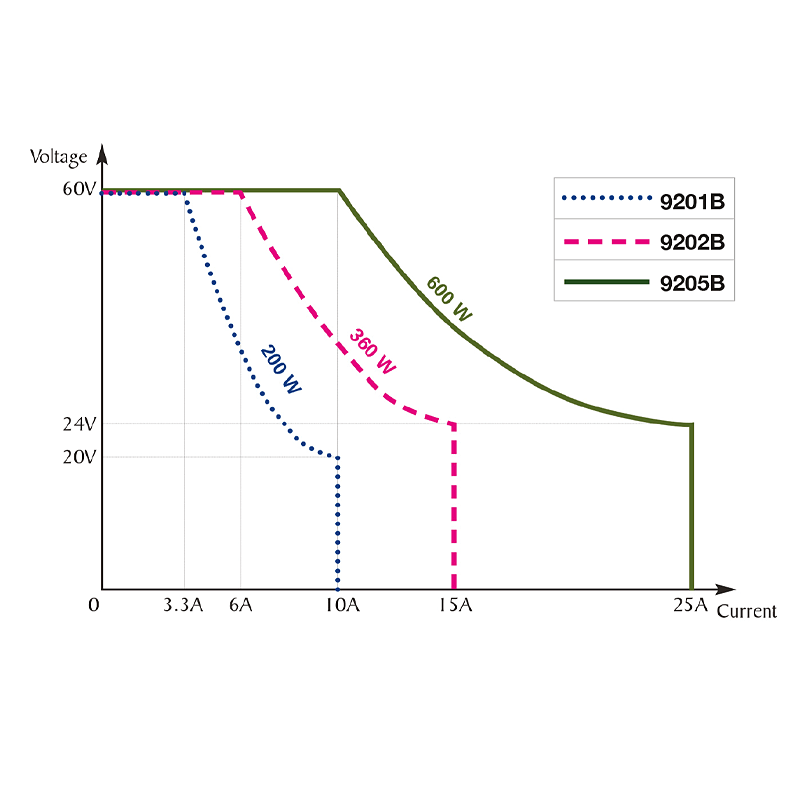

Differences to other models in the series

  • 9201B: 60V / 10A / 200W
  • 9202B: 60V / 15A / 360W
  • 9205B: 60V / 25A / 600W
  • 9206B: 150V / 10A / 600W

The 9202B offers an optimal combination of high power, precise control and advanced multi-range technology and is ideal for applications with increased power requirements.

Alternate products (3 products)

Alternate products (3 products)

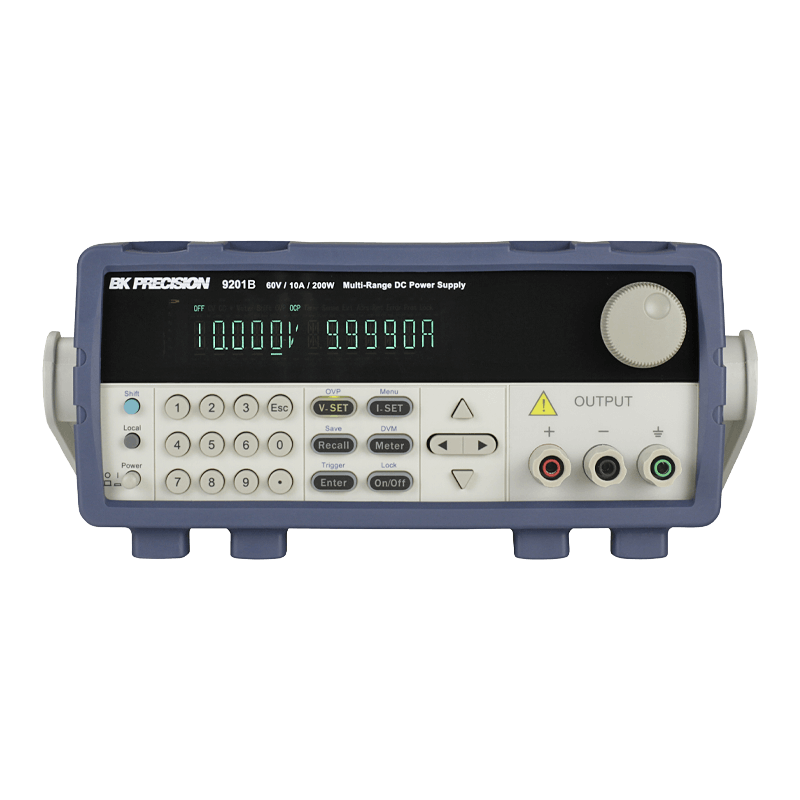

9201B
New
Series
B&K Precision
9201B
Programmable DC Power Supply Unit, 1 Channel, Multi-Range, 60 V, 10 A, 200 W, USB, RS-232, GPIB, 9200B Series
Delivery time upon request
€889.00

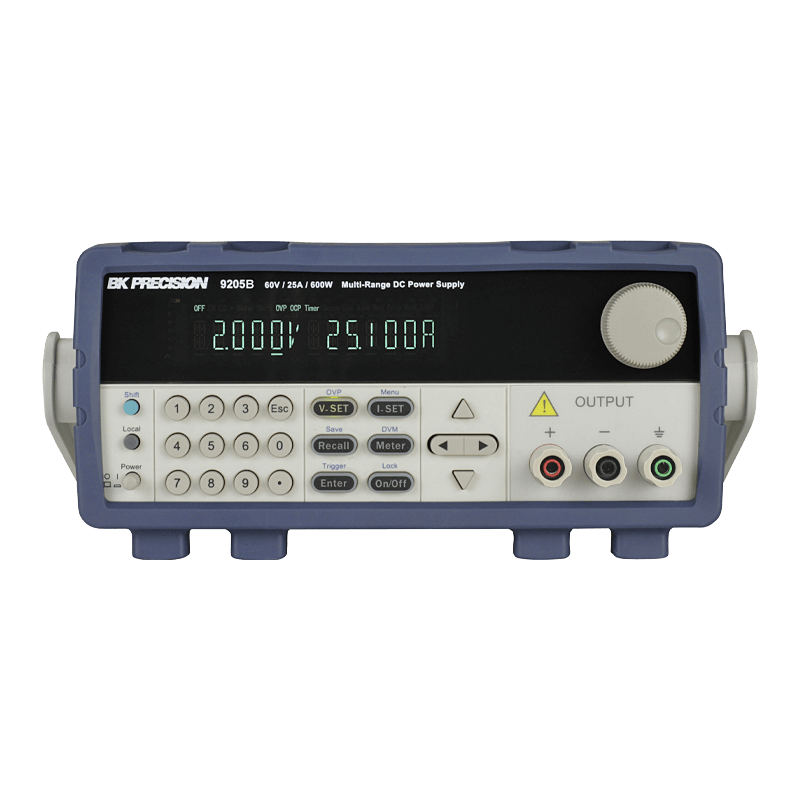

9205B
New
Series
B&K Precision
9205B
Programmable DC Power Supply Unit, 1 Channel, Multi-Range, 60 V, 25 A, 600 W, USB, RS-232, GPIB, 9200B Series
Reordered - in stock. Delivery time on request
€1,750.00

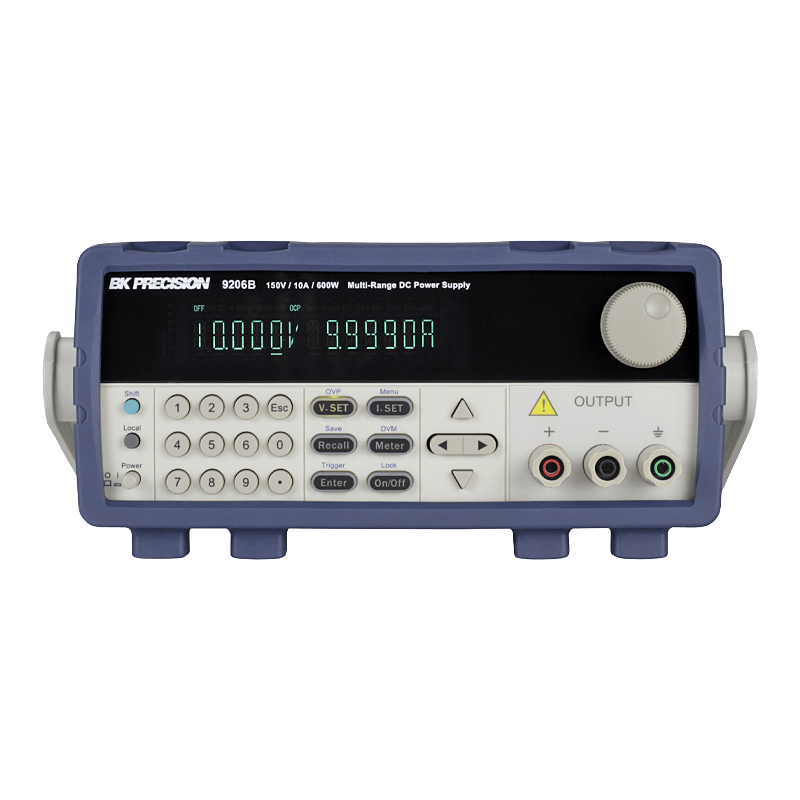

9206B
