B&K Precision 5491B | Bench Multimeter, TRMS, 50,000 Counts, 4.75 Digits, USB

Name: 5491B | Bench Multimeter, TRMS, 50,000 Counts, 4.75 Digits, USB
Brand: B&K Precision
SKU: BK5491B
Price: 570.0 EUR
Availability: InStock

Manufacturer number: BK5491B

Reordered - in stock. Delivery time on request

€570.00

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision 5491B | Bench multimeter, TRMS, 50,000 counts, 4.75 digits, USB

Technical Data

Accuracy voltage measurement DC:	0,02 %
Article number:	BK5491B
Current measuring range AC:	5 mA - 20 A
Current measuring range DC:	5 mA - 20 A
Dimensions (L x W x H) (mm):	355 x 225 x 100
Diode test / continuity test:	Yes / Yes
Display:	VFD, dual
Frequency measuring range:	10 Hz - 1 MHz
Interfaces:	USB, RS-232
Measurements per second:	25
Model:	BK5491B
Number of positions:	4.75
Resistance measuring range:	500 Ω - 50 MΩ
Temperature measurement:	No
Voltage measuring range AC:	500 mV - 750 V
Weight (kg):	2.5
max. Measuring range DC (V):	1000
min. Measuring range DC (mV):	500

Documents & Downloads

Datasheet

pdf | 2.60 MB

Description

5491B | Bench Multimeter, TRMS, 50,000 Counts, 4.75 Digits, USB

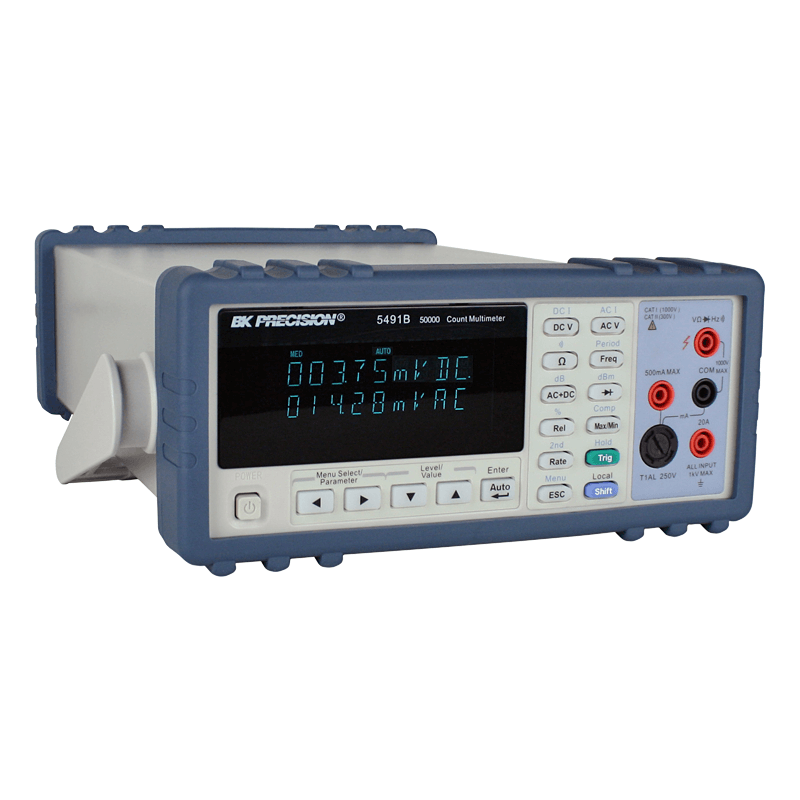

The B&K Precision 5491B is a powerful true RMS bench multimeter with high resolution and dual display, which is ideal for demanding measurement applications in laboratories, production environments, development and service. Its high accuracy, fast measurement rate and extensive interfaces make it particularly suitable for professional users. In addition to the standard measurement functions, the device offers integrated mathematical functions such as relative value measurement, max/min, dBm, dB, percentage display, hold and comparison mode as well as a convenient limit value check with acoustic signal. The device can be fully remote-controlled and integrated into automated test environments via USB and RS232.

Product features:

Display resolution: 50.000 counts, 4¾ digits
Direct voltage accuracy: ±0.02%
Measurement rate: Up to 25 readings per second
True RMS: Yes (AC+DC)
Measurement functions: Voltage, current, resistance, frequency, period, diode test, continuity
Dual display: Two measured values can be displayed simultaneously
Limit value check: With audible alarm when exceeding/falling below

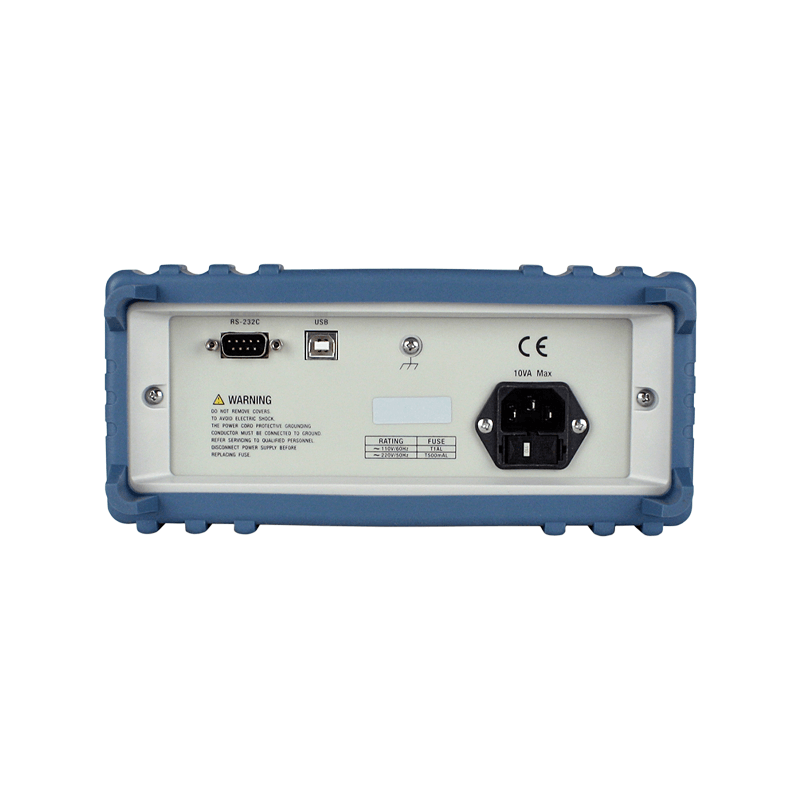

Interfaces: USB (Virtual COM port) and RS232
SCPI compatible: Yes
Protection category: CAT I (1000 V) / CAT II (300 V)
Dimensions: 225 × 100 × 355 mm (W×H×D)
Weight: 2.5 kg
Warranty: 3 years

Compared to the cheaper 2831E model, the 5491B offers a significantly higher resolution (50.000 counts vs. 20,000 counts) and better basic accuracy for DC voltage measurements (±0.02% vs. ±0.03%). It also has an RS232 interface and is SCPI compatible, making it ideal for automated test environments. The frequency ranges for AC measurements and the accuracy for current and resistance measurements have also been extended in the 5491B. The 5491B is therefore primarily aimed at professional users with higher requirements for precision, data integration and versatility.
